If you deal with flashlights, electronics, power tools, or anything that needs a good amount of power, the 18650 battery is probably already an old friend. It’s not big, but it packs plenty of energy, fits easily into most devices, and has basically become the “standard” for many high-power applications.

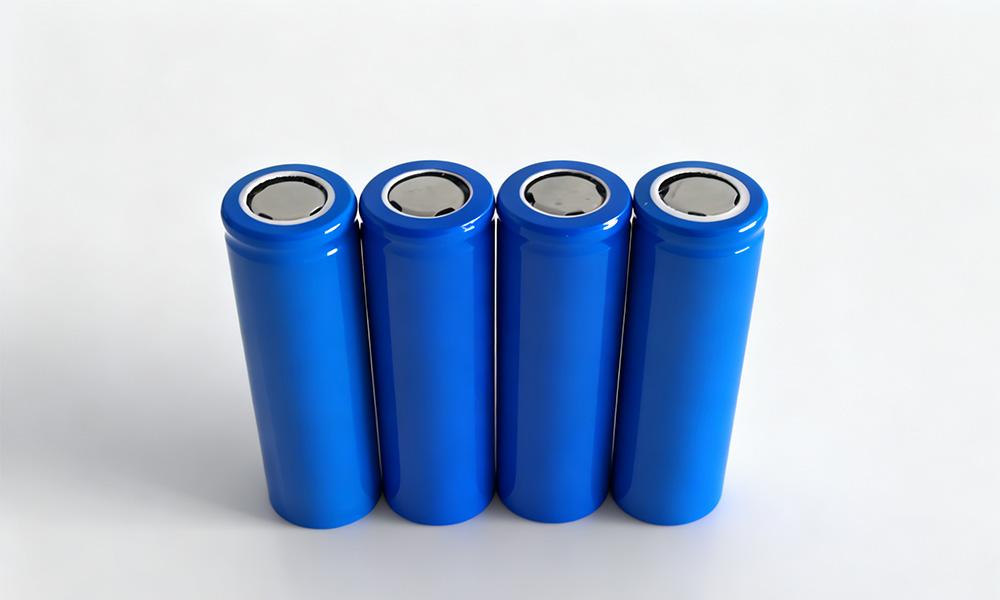

What Exactly Is 18650?

“18650” is just a size code—about 18mm in diameter and 65mm in length. Nothing fancy on the outside, but it stores way more energy than AA or AAA batteries. You’ll see it in high-power flashlights, tools, small electric vehicles, portable gadgets, and tons of DIY battery packs. If something needs steady power and you don’t want it dying on you halfway, an 18650 usually gets the job done.

Which Specs Actually Matter?

Most people check the capacity first, but that’s only one piece of the puzzle.

Voltage: The nominal voltage is usually 3.6V or 3.7V. Fully charged, it goes up to 4.2V; when nearly empty, it drops to around 2.7V. If you keep draining it below that, the battery will technically keep running, but you’re cutting its lifespan—fast.

Capacity: Most cells fall between 2600mAh and 3500mAh. Higher capacity means longer runtime, but that doesn’t automatically make it “better” for every device. Some devices draw a lot of current—if the battery can’t handle high discharge, you’ll get voltage sag, heat, and unstable performance.

Discharge Rating (CDR): This one’s super important. CDR tells you how much current the battery can deliver continuously. For flashlights, tools, e-bikes, and other high-draw devices, a battery with a weak CDR will struggle no matter how big the capacity looks on paper.

Internal Resistance: You won’t always see it listed, but lower internal resistance means better stability and less heat during use.

Protected vs. Unprotected:

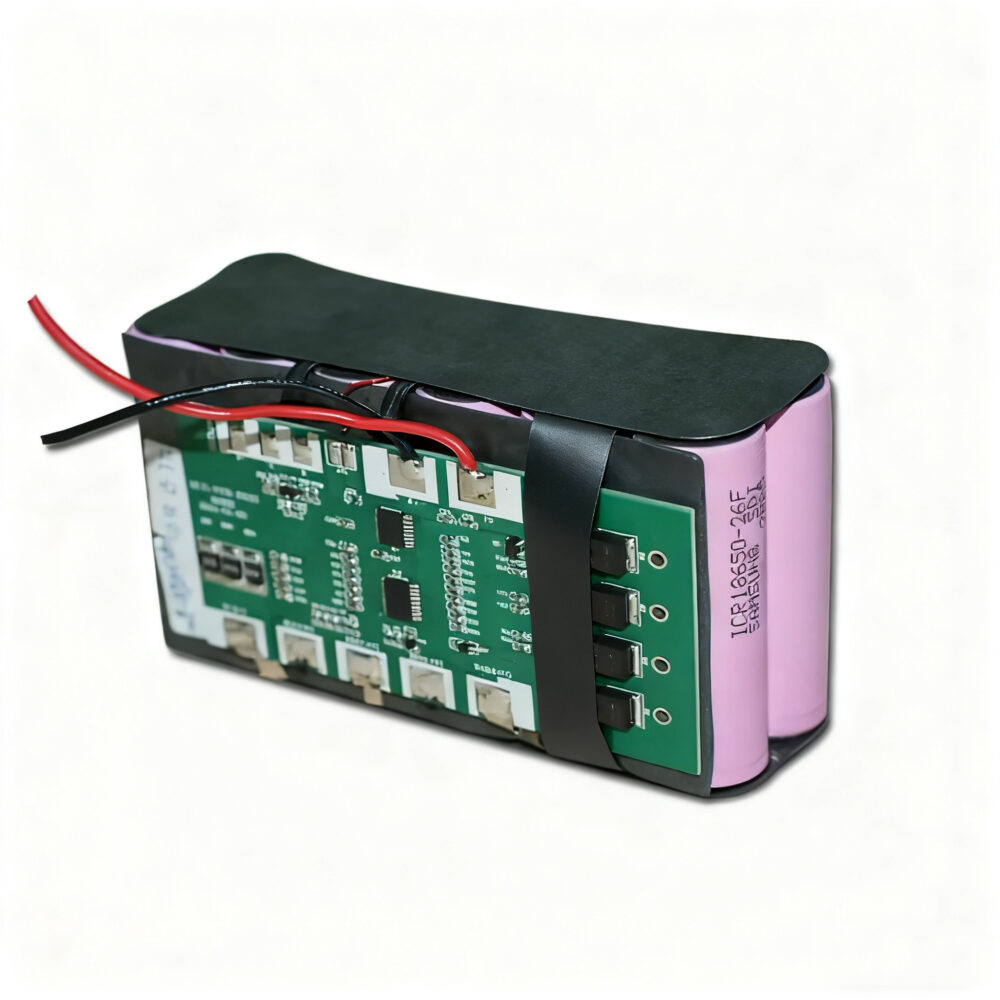

• Protected cells have built-in circuits that prevent over-charge, over-discharge, and short circuits. Great for everyday users.
• Unprotected cells are just the bare cell—more flexible, but you need to know what you’re doing. Often used in professional devices or battery pack assembly.

Button-top vs. Flat-top: Some devices require one or the other. If the head shape doesn’t match, the battery simply won’t fit. Simple but very common mistake.

Understanding the Voltage Range

Even though the nominal voltage is 3.6V/3.7V, the real working voltage moves across a range:

• Full: ~4.2V
• Mid-use: 3.xV
• Near empty: ~2.7V

Most devices cut off automatically before it dips too low, because once a cell falls under 2.5V, the internal chemistry is permanently damaged. A lot of people think lithium batteries “can’t last,” but in reality, it’s because they use them until they’re completely drained every time.

How Do You Choose the Right One?

Choosing an 18650 is easier than it looks:

1. Know what your device needs.
   High-power devices → focus on discharge rating.
   Regular electronics → capacity and stability matter more.
2. If you’re unsure, get a protected cell.
   It’s the safest choice for most users.
3. Buy from reliable brands.
   The super-cheap cells online with ridiculous capacity claims? Stay far away.
   Fake 18650s are everywhere—many are rewrapped junk cells or recycled packs with awful safety and lifespan.

How to Make Them Last Longer

18650s aren’t delicate, but a few simple habits make a huge difference:

• Don’t drain them to zero before charging.
• Charging only to around 80–90% helps extend lifespan.
• Avoid leaving them plugged in forever.
• Use and charge them in normal room temperatures—not extreme heat or cold.
• If storing long-term, keep them around half charge in a dry, room-temperature place.

A Quick Closing Note

An 18650 may look like just another battery, but there’s actually quite a bit to it. Once you understand the basics—voltage, capacity, discharge rating, protection circuits—you’ll avoid most of the common pitfalls and keep your devices running safely and smoothly.

And if you’re working on a project that needs 18650 battery packs—3S, 4S, 7S, 10S, whatever—we can build custom battery packs based on your required voltage, capacity, wiring, BMS, and size. No need to mess with assembling cells by yourself.

If you’ve ever tried picking a 12V lithium battery pack for solar setups, outdoor lighting, or low-voltage electronics, you know the market can be full of questionable options. Overrated capacity, no-name BMS boards, random cells welded together like someone was in a hurry — you get the idea.

When I first started reviewing 18650 battery packs, especially 12V packs for solar applications, my expectations were low. Really low.

But after testing multiple models, examining teardown photos, and tracking long-term performance in real-world outdoor projects, one series kept standing out: the Apsenx 18650. Not because it’s flashy — but because it’s the kind of pack that won’t make you call the installer two months later.

In this guide, I break down three Apsenx battery solutions that cover most 12V use cases. You’ll get honest pros and cons, real-world insights, and the exact projects each pack works best for.

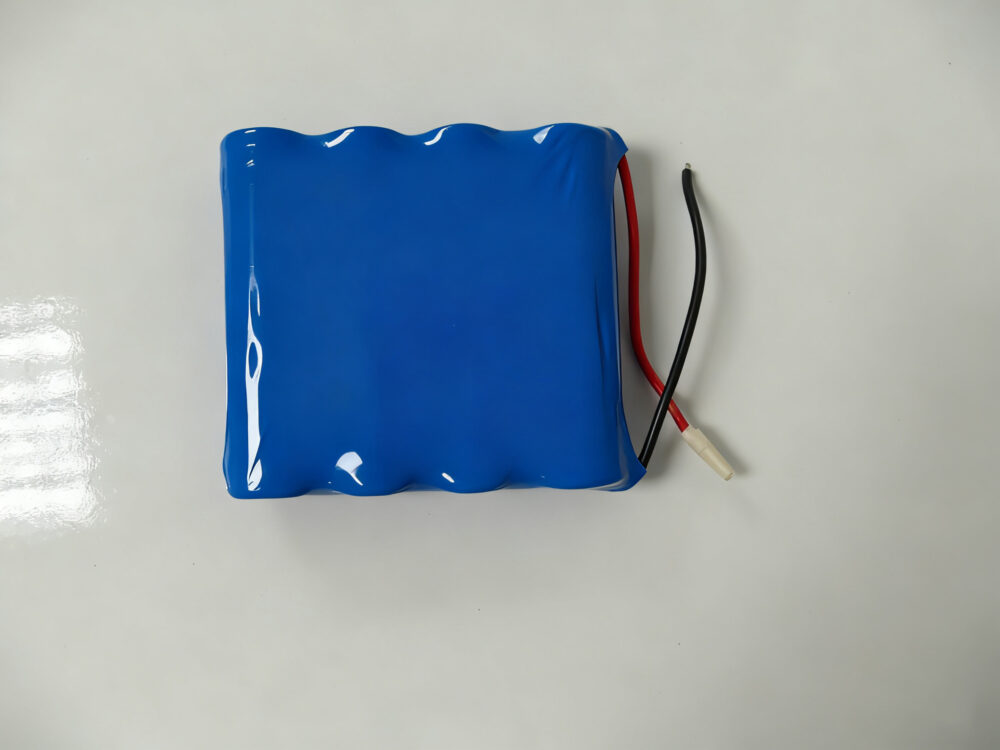

The Reliable Workhorse: 4S1P 18650 Solar Battery Pack

🔗 https://www.anpsglobal.com/18650-battery-pack-4s1p-solar-battery-supply/

What Surprised Me About the 4S1P Solar Battery Pack

It’s unbelievably stable.

Not “high performance,” not “super capacity”—just stable, predictable, and balanced across charge cycles. And honestly? That’s exactly what a solar system needs.

Why the 4S1P Format Works

• Only one cell per parallel group — no mismatched cells fighting each other.
• Voltage is perfect for 15–18V solar charging systems.
• Lower internal resistance → better efficiency under sunlight fluctuations.
• Extremely compact footprint.
• Stays cool under daily charging, even in hot environments.

I’d call this the “no-drama solar battery.”

If you’re powering IoT nodes, telecom boxes, small pumps, data loggers, or compact solar lights — this pack keeps everything running smoothly, without surprises.

Ideal Use Cases

• Small off-grid solar kits
• Weather stations
• Security sensors
• Light outdoor IoT systems
• Gate controllers
• Compact UPS units

In real-world outdoor deployments, consistency beats raw capacity. That’s why this pack stands out.

The Classic 12.6V Solution: 3S1P 2600mAh 18650 Pack

🔗 https://www.anpsglobal.com/12v-18650-battery-pack-3s1p-2600ah-wholesale/

The Classic 12.6V Solution: 3S1P 2600mAh 18650 Pack

This one feels like the classic “everyone needs one eventually” pack.

It’s not huge and overkill.
It’s a straightforward 12V (12.6V max) lithium pack — compact, lightweight, and easy to integrate.

Why the 3S1P Pack Is So Popular

• Clean 12.6V → 10.8V discharge curve
• Ideal for electronics expecting a 12V lead-acid replacement
• Perfect size for handheld devices
• Very lightweight
• Extremely cost-effective for bulk OEM supply

Best Suited For

• Portable instruments
• Emergency lighting
• Handheld tools
• Security devices
• Compact solar lanterns
• Rechargeable consumer electronics

The “Secret” Advantage

Many factories build 3S1P packs using mixed cell batches. Apsenx, however, uses matched, same-cycle, same-grade 18650 cells. That’s why these packs last longer and avoid imbalance issues.

It’s small. Efficient. Honest.

If you need the simplest 12V lithium solution, start here.

The Heavy-Duty Option: Solar Street Light Battery Packs

🔗 https://www.anpsglobal.com/rechargeable-12v-solar-street-light-battery-packs/

Let’s be blunt:
Most solar street lights die because the battery dies.

Not the LED ，solar panel andcontroller.

Is The battery.Why? Because street lights are harsh environments:

• Daily deep discharge
• High daytime temperature
• Nighttime cooling cycles
• Weather fluctuations
• Humidity
• Rain
• Constant outdoor vibration

Cheap lithium packs simply don’t survive this.

What makes these packs different

• Purpose-built for street lights (not repurposed generic packs)
• High-grade cell matching
• Strong cycle life under deep discharge
• Solid BMS protection
• Designed for wiring simplicity
• Good thermal control

These packs are designed to survive years, not months.

Where they shine

• Municipal street lights
• Solar parking-lot lamps
• Garden or pathway lighting
• Rural or off-grid lighting projects
• Outdoor security lamps

If you want to prevent callbacks from clients, you use the battery designed for the environment.

Why Apsenx Battery Packs Perform Better

After comparing multiple brands side-by-side, a few differences consistently show up:

Apsenx battery cell matching is tighter

Most budget packs mix cells from different batches.
ANPS doesn’t — which directly improves cycle life.

BMS boards aren’t the cheap generic type

They use properly sized MOSFETs and reliable balancing circuits.

Thermal design is actually considered

Huge deal for solar street lights.
Especially in hot countries.

They design by application, not by copy-paste

Most factories use one pack and rename it 10 times.
Apsenx creates separate designs for:

• Solar systems
• Street lights
• Consumer devices
• OEM project packs

That matters more than people think.

Direct Comparison Table (Simple & Realistic)

Feature	4S1P Solar 18650 Pack	3S1P 12V 18650 Pack	Solar Street Light Battery Pack
Voltage	14.8V (16.8V max)	12.6V (max)	12V solar system compatible
Ideal Use	Solar mini-systems, IoT	Small electronics	Outdoor solar lighting
Parallel Groups	1	1	Multiple configs
Strength	Stable, efficient	Lightweight, cheap	Outdoor durability
Lifespan	>500 cycles	>500 cycles	High cycles under harsh conditions
Typical Applications	Sensors, UPS mini-kits	Tools, lanterns, devices	Street lamps, pathway lighting
Pros	No cell mismatch	Great for OEM	Survives heat & deep cycles
Cons	Lower capacity	Limited current	Slightly higher cost

Honestly, understanding your drone battery—its lifespan, endurance, and how you care for it—is one of the most practical things you can do to improve flying.
Whether you’re filming, mapping, doing security patrols, or just flying for fun, how long your battery lasts, how stable it is, and how much it costs in the long run all depends on it.

So I’m putting everything in one place: battery tech, lifespan, flight time, charging habits, storage, and how to pick a long-endurance drone.

1. Why Do Most Drones Use LiPo Batteries?

Why do 90%+ of consumer and professional drones use LiPo? Honestly, it’s just practical, no magic here.

1.1 High Energy Density

Same weight, more energy stored. That means—same payload, longer flight.
Plain and simple: better endurance.

1.2 High Discharge Rate

Takeoff, sudden climbs, fighting wind, quick accelerations… all demand big current bursts.
LiPo can handle it, unlike some batteries that just choke.

1.3 Customizable Shapes & Lightweight

LiPo can be flat, thin, and light.
Lighter drone, better efficiency.

1.4 Mature & Safe (when used correctly)

Been used in drones for years, reliability proven.
As long as you don’t mess with charging or storage, it’s “light, good, and stable.”

Bottom line:
LiPo is the best balance of weight, performance, and cost right now.

2. Why Do Drone Batteries Become Less Durable Over Time?

External factors hit them harder than most people realize.
Theoretically, LiPo lasts 200–300 full charge cycles, but in real life? Usually shorter.

Here are the most common “silent killers” for drone batteries:

2.1 Strong Wind

Flying against the wind forces the motors to push harder.
More current, more heat, battery ages faster.

2.2 Low Temperature

Cold days hit noticeably.
You’ll see:

• Voltage dropping faster
• Flight time clearly reduced
• Auto-return triggered by “low voltage”

Preheating the battery actually helps.

2.3 Aggressive Flying

Rapid acceleration, hard stops, sharp turns, sport mode…
Current fluctuates wildly; LiPo hates that.

Bottom line:
The harder you fly, the faster your battery wears out.

3. Correct Charging Habits & Storage That Extend Battery Life by at Least 30%

LiPo is a bit “sensitive,” but if you handle it right, it lasts much longer.

3.1 Don’t Charge Immediately After Flying

Freshly flown batteries are hot.
Don’t rush—let it cool to room temp first.

3.2 Storing Long-Term? Keep at 30–60%

Fully charged or fully empty storage accelerates aging.

3.3 Don’t Fully Drain

Return when battery hits 10–20% to avoid permanent damage.

3.4 Regularly Check the Battery

Swelling, leakage, strange smell—stop using immediately.
Exploding batteries are always from taking risks.

4. How to Charge a LiPo drone battery Properly

This routine is simple but super practical:

• Check battery temperature (25°C is ideal)
• Use the original charger; don’t mismatch voltage or current
• Don’t fly or discharge while charging
• Keep it ventilated
• Unplug when full; don’t leave it plugged in

These small habits noticeably extend cycle life.

5. How Long Does a Drone Battery Last? (Lifespan vs Flight Time)

Newbies often mix up “lifespan” and “single flight time”—they’re not the same.

5.1 Battery Lifespan (Cycle Life)

Normal flying:

• 200–300 cycles

Aggressive or heavy load flying:

• About 150 cycles

5.2 Single Flight Time

Typical numbers:

• Consumer drones: 20–30 min
• High-end flagship: 35–46 min (e.g., Mavic 3 series)
• Industrial drones: 55–70 min (e.g., Matrice 300 RTK)
• Fixed-wing / hybrid industrial: hours, sometimes 10+ hours

6. Which Drones/Batteries Have the Longest Flight Time Today?

From multiple reviews:

6.1 Consumer-Level: 40–46 minutes

Examples:

• DJI Mavic 3 / Mavic 3 Pro
• DJI Air series with high-capacity batteries

6.2 Professional-Level: 50–70 minutes

Example:

• DJI Matrice 300 RTK (~55 min)

6.3 Industrial & Special Applications: Up to Several Hours

Examples:

• Fixed-wing industrial drones
• Gas-electric hybrid drones
• Large wingspan multirotors

Some reach 600 min (10 hours).
Used for land inspection, border patrol, mapping, etc.

7. Industries That Require Maximum Endurance

These industries basically live on long flight time:

7.1 Mapping / GIS / Aerial Surveying

Long routes; more endurance = higher efficiency.

7.2 Agriculture Spraying & Crop Monitoring

Big fields; constant battery swapping slows everything.

7.3 Powerline & Pipeline Inspection

Long, straight routes; endurance is critical.

7.4 Public Safety / Search & Rescue / Fire Recon

Needs continuous searching or hovering.

7.5 Construction & Mining Monitoring

Large areas (2–5 km); sometimes endurance matters more than image quality.

8. Factors That Affect Drone Flight Time

Main things that make or break flight time:

8.1 Battery Capacity (mAh / Wh)

Higher Wh = theoretically longer flight.

8.2 Motor Efficiency

More efficient motors = less power draw.

8.3 Flight Weight (Payload)

Adding a GoPro, light, or thermal cam can drop flight time 20–50%.

8.4 Environment

Headwind, cold, high humidity all shorten flight.

8.5 Flying Style

Sport mode, high-speed flight, rapid maneuvers = battery killer.

9. Key Things to Consider When Buying a Long-Endurance Drone

Want longer flight? Focus on:

9.1 Manufacturer’s Rated Time vs Real Flight Time

Official specs are usually 15–30% longer than reality. Totally normal.

9.2 Battery Quantity & Price

Some drones have expensive batteries.
Sometimes switching models is more economical.

9.3 Drone Weight & Structure

Lighter drones fly longer, but handle wind worse.

9.4 Your Task Needs

Commercial work often requires bigger platforms (Matrice series, etc.).

9.5 Accessory Ecosystem

Easy to buy batteries?
Supports fast charging?
Any larger battery options?
These affect long-term cost.

Summary

Drone batteries may look simple, but half your flying experience depends on them.
Once you understand why LiPo is popular, how to extend lifespan, and what endurance different tasks need, picking the right drone becomes obvious.

Introduction

Honestly, 18650 batteries are everywhere—you’ll find them in flashlights, laptops, power banks, and all sorts of DIY electronics. And if you don’t really get their voltage behavior, you might end up killing your battery faster than you expect, or worse, have safety issues. I’ve spent a fair amount of time tinkering with them, and let me tell you… understanding the voltage is half the battle. In this guide, I’ll walk through all the voltage basics, the material differences, some real-world gotchas, and even how I check them in the field.

1. 18650 Battery Voltage Basics

So, first things first: an 18650 is just a cylinder, usually 18 mm across and 65 mm long. Nothing fancy. But the voltage—that’s where the magic (and danger) happens.

• Nominal Voltage: Most of these cells sit at 3.7 V. Some older or niche ones say 3.6 V. Not a huge difference, but it matters if you’re stacking them in series.
• Fully Charged Voltage: 4.2 V. Go above that and you’re flirting with overcharge risk. Swelling, overheating—you name it. I once ignored this on a cheap charger… never again.
• Discharge Cutoff: Datasheets say 2.75 V, but honestly, I usually try not to go below 3.0–3.2 V if I want the battery to last more than a couple dozen cycles.

Here’s roughly how state-of-charge (SOC) relates to voltage:

SOC	Voltage (V)
100%	4.2
50%	3.7
0%	3.0–3.2

You’ll notice voltage isn’t static—it wiggles with load, temperature, and age. I always measure at rest to get a realistic SOC reading.

2. Different Materials, Different Voltages

Here’s where things get interesting. Not all 18650s are created equal; chemistry changes how they behave.

LiCoO₂ (Lithium Cobalt Oxide)

• Nominal: 3.7 V
• Full: 4.2 V
• Minimum safe: 2.75 V

This is the classic one. Power tools, electronics—you’ll see it everywhere. I’ve noticed they give good punch but age faster if abused.

LiFePO₄ (Lithium Iron Phosphate)

• Nominal: 3.2 V
• Full: 3.6 V
• Minimum safe: 2.0 V

Safer, longer life, but less energy per cell. I once swapped a LiCoO₂ pack for LiFePO₄ in a DIY UPS project—it lasted way longer, but the output voltage sagged a bit under load.

Rule of thumb: always check the datasheet. Don’t assume every 18650 behaves the same.

3. Factors Affecting 18650 Battery Voltage

Voltage isn’t just a number—it’s influenced by a bunch of stuff:

• Load Conditions: Heavy draw? Voltage drops fast. I’ve fried LED strips thinking a battery was full.
• Temperature: Cold air kills voltage, heat can trick you into thinking the battery is charged.
• Battery Age: Older cells just don’t hold voltage steady. I’ve seen nominal 3.7 V cells read 3.5 V after 500 cycles.
• SOC: No surprises—half empty = lower voltage.
• Manufacturing Differences: Two “identical” cells from different brands? You’ll see minor differences. Sometimes it’s annoying in series packs.

4. Common Questions About 18650 Voltage

Q1: What counts as 0%?
I go with ~3.0 V. Datasheets say 2.75 V is okay, but trust me, pushing that low kills the cell sooner.

Q2: Can I charge above 4.2 V?
Nope. I made that mistake once on a cheap charger… battery puffed, permanent damage. Overcharging is not worth it.

Q3: Voltage accurate for SOC?
Roughly. To be precise, measure at rest or use a BMS. I’ve found multimeters invaluable for double-checking after a long run.

5. Charging Guide for 18650 Batteries

A few things I stick to:

• Use a lithium-ion-specific charger that matches your battery type. Don’t wing it.
• Charge at the recommended current: 0.5C–1C. Faster might work, but life drops.
• Avoid deep discharge (<3 V) and storing fully charged (4.2 V) for ages—shortens life.
• LiFePO₄? Max 3.6 V. I always use a BMS for safety.

Honestly, watching a pack charge while monitoring voltage is kind of satisfying. You notice the curve and how the battery “settles” near full charge.

6. 18650 Voltage Measurement

Here’s how I usually measure voltage:

• Digital multimeter or BMS with a readout.
• Measure at rest—give it a few minutes after use.
• Don’t trust voltage right after charging or under heavy load.

For series packs: check each cell individually. I learned this the hard way—one weak cell can drag down the whole pack and cause overdischarge.

Conclusion

Understanding 18650 battery voltage isn’t rocket science, but it’s critical if you want safety, longevity, and performance.

• Standard 3.7 V cells charge to 4.2 V and shouldn’t drop below 3.0 V.
• Voltage depends on chemistry, temperature, load, and age.
• Monitor voltage, use the right charger, and don’t abuse the cells.

Do that, and your 18650s will last longer and work reliably across all your devices. I’ve seen the difference firsthand—ignore it, and you’ll regret it.

What is RC Car Battery?

When you’re talking about RC car battery, what you’re really talking about is the heart of your car. It’s the component that actually makes the wheels spin, powers the motor, and keeps the electronics running. Without it, your RC car is just a fancy toy shell.

There are different types of RC car batteries, each with its pros and cons, and knowing the difference matters if you don’t want to burn out your ESC or end up with a car that barely moves:

• Nickel-Cadmium (NiCd): The old-school choice. They’re robust and cheap, but they have that annoying “memory effect” — if you don’t fully discharge them before charging, they lose capacity. For casual driving, they work, but don’t expect race-level performance.
• Nickel-Metal Hydride (NiMH): An upgrade from NiCd. They hold more charge, have less memory effect, and are safer. They’re good if you just want a decent runtime without fuss.
• Lithium-Polymer (LiPo): This is the standard for most modern RC cars, especially racers. They’re lightweight, powerful, and can deliver high burst speeds. But there’s a catch: they’re delicate. Mishandle them, charge them wrong, and they can swell, catch fire, or just die early.
• Lithium-Ion (Li‑Ion): Safer than LiPo in many ways, longer lifespan, but usually not as powerful in bursts. Still, they’re a solid choice for those who want reliability over raw speed.

The battery you pick isn’t just about “volts and mAh”; it affects your car’s balance, acceleration, and overall fun factor.

What is the Best RC Car Battery?

Here’s the reality: there is no one-size-fits-all best battery. It depends entirely on what you need and how you drive your car.

• Casual users: Don’t overthink it. A decent NiMH or mid-range LiPo will do the job. You get reasonable performance and fewer headaches.
• Racers / enthusiasts: You want a LiPo, high C rating, multiple cells, and solid brand backing. This is for when you want every bit of speed and torque you can get.
• Safety first: The “best” battery is one that performs well and keeps you from frying your electronics or worse. A cheap LiPo might look good on paper, but in practice it could be unstable, inconsistent, or dangerous.

In short, the best RC car battery is a combination of voltage, capacity, discharge rate, size, weight, and quality. All of these factors interact. For example, a battery with super high capacity might weigh your car down and ruin handling. A battery with high voltage might stress your ESC if your car wasn’t designed for it.

How to Choose the Right RC Car Battery

Picking the right battery isn’t just about numbers. It’s about matching the battery to your car, your driving style, and your priorities.

1. Voltage (V)

Voltage is the energy your car can draw at any moment. Too low, and your car struggles; too high, and you risk frying electronics. Always check your car’s ESC and motor specs before buying.

2. Capacity (mAh)

Capacity tells you how long you can drive before needing a recharge. Bigger capacity = longer runtime, but heavier battery. Sometimes you’re better off with a smaller, lighter battery if you care about speed and handling more than a few extra minutes of drive time.

3. Discharge Rate (C Rating)

High C ratings let your battery deliver bursts of power without voltage sag. Important if you accelerate fast or climb hills. For casual cruising, moderate C ratings are more than enough.

4. Size and Weight

This is often overlooked. The battery has to fit in the compartment and not upset your car’s balance. A bulky battery can ruin steering, jump performance, and even make flips more likely.

5. Brand and Quality

Not all batteries are created equal. Stick with known brands and read reviews. Quality matters more than specs on paper — a cheap high-C LiPo can underperform a well-made mid-C battery.

6. Charging and Maintenance

• Always use a compatible charger. LiPo batteries need balance charging.
• Never leave batteries unattended while charging.
• Store at around 50–60% charge if you’re not using them for a while.
• Keep them away from extreme heat or cold.
• Monitor for swelling or damage — if you see any, retire that battery immediately.

Key Takeaways

1. RC car batteries are the core of your car — everything depends on them.
2. The best RC car battery depends on your needs. Don’t chase numbers blindly.
3. Consider voltage, capacity, C rating, size, weight, and quality together. Ignoring one can hurt performance or safety.
4. Proper care is non-negotiable. Even the best battery won’t last if you abuse it.

What Kind of Cells Do RC Car Batteries Use?

So, when we talk about an RC car battery, it’s not just about volts and mAh — what’s inside really matters. I’m talking about the cells that make the battery tick. Different cells behave differently, and that’s what actually affects how your car drives.

• NiCd cells (Nickel-Cadmium): These are the old-school cylindrical ones. Tough little guys, but kinda heavy and they have this “memory effect” — if you don’t fully discharge them before charging, they lose capacity over time.
• NiMH cells (Nickel-Metal Hydride): Also cylindrical, a bit lighter, hold more juice, and safer for casual fun. Perfect if you just want decent runtime without fuss.
• LiPo cells (Lithium-Polymer): These are usually flat pouch cells. Super light, can pack a lot of power, and give your car bursts of speed. The catch? Handle them wrong and they can swell or even catch fire. But if you know what you’re doing, they’re the go-to for racers and high-performance cars.
• Li‑Ion cells (Lithium-Ion): Usually like those 18650 battery cells. More stable than LiPo, longer lifespan, but not quite as powerful for those quick bursts. Good for reliability over raw speed.

Honestly, most modern RC car batteries use LiPo cells because they hit the sweet spot between weight, size, and power. But don’t just grab the fanciest battery — think about your car’s electronics, the space you have for the battery, and how you actually drive. A racing buggy? LiPo all the way. A casual crawler? NiMH works just fine.

Choosing the right RC car battery isn’t just about “faster, bigger, stronger.” It’s about balance, compatibility, safety, and performance in the real world. Spend a little time understanding your car and your driving style, and you’ll get a battery that’s fun, reliable, and safe.

If you’ve owned a NEBO flashlight for a while, chances are you’ve noticed the power slowly fading or the charging light not behaving like it used to. That usually means one thing — the battery’s reached the end of its life. The good news? Replacing it isn’t complicated once you know the right steps and what to watch for.

Let’s walk through it.

1. Identify Your Model

NEBO has several rechargeable models — Slyde King 2K, Torchy 2K, Redline Blast, and others. The replacement process varies slightly between them, so it’s worth checking which one you’re holding before you begin. The model name is usually printed on the flashlight body or under the clip.

2. Remove the Old Battery

Start by unscrewing the tail cap — the end opposite the lens. Most NEBO lights use a spring-loaded cap, so twist gently counterclockwise. Inside, you’ll see the battery, typically a 18650 lithium-ion cell.

A few users on Reddit mentioned that in some models, like the Torchy 2K, the battery is a customized version with built-in protection and charging contacts on the top. Don’t force it out — just tilt the flashlight and let gravity do the work.

3. Note the Battery Type

The original batteries are rechargeable lithium-ion cells, usually rated around 3.7V with capacities between 2000–2500mAh. These are high-drain cells designed for flashlights, not standard household batteries.

If your light came with internal charging (like USB-C or magnetic charging), that battery is likely a protected 18650 cell — meaning it has a small circuit that prevents overcharging and deep discharge.

4. Replace Carefully

Before inserting a new one, make sure:

• The positive (+) side faces the head (the lens side).
• The negative (–) end touches the spring in the tail cap.
• The battery fits snugly without forcing it in.

Then screw the cap back on, gently but firmly.

For lights with built-in charging ports, you can usually recharge the new cell directly inside the flashlight. If yours charges externally, use a lithium-ion charger rated for 18650 cells — never a NiMH or AA charger.

5. Common Issues and Fixes

• Light flickers or doesn’t turn on: Check if the tail cap is tight, or clean the contact points with a dry cloth.
• Battery doesn’t charge: Try another USB cable or adapter. Some NEBO models are picky about chargers.
• Short runtime: It might be a sign the replacement battery isn’t holding charge properly.

6. A Quick Note on Safety

Don’t mix old and new batteries. Don’t use unprotected bare cells unless you’re certain your flashlight supports them. And never store lithium cells in extreme heat or near metal objects.

Replacing the battery in a NEBO flashlight isn’t just maintenance — it’s a quick way to bring a solid light back to life. With the right cell and a bit of care, your flashlight will be ready for another few years of service — whether that’s in your truck, your toolbox, or your camping bag.

You’ll quickly realize—the trickiest part of flying drones isn’t the controls, it’s the battery. The battery is literally the heart of your drone; without it, your “dream in the sky” won’t even take off. Today, we’re talking about how long drones fly, how to choose the right battery, how to take care of it, and some often-overlooked details about custom drone batteries.

1. Battery Types: It’s More Complicated Than You Think

When it comes to drone batteries, you’ll mainly see three types:

Type	Features	Pros & Cons	Typical Use
LiPo (Lithium Polymer)	Lightweight, high energy density, high current output	Can swell, temperature-sensitive	Consumer drones, racing drones
Li-ion (Lithium-ion)	More stable, longer cycle life	Heavier, lower current output	Long-endurance flights, industrial applications
Ni-Cd (Nickel-Cadmium)	Older technology	Memory effect, low energy density	Rarely used today, early drones

Personally, I prefer LiPo, especially for lightweight, high-performance drones. But if you’re doing long-endurance or industrial tasks, Li-ion has its place.

By the way: If you’re considering custom drone battery, it’s critical to match the voltage, current, capacity, and weight to your drone. Even the most premium battery won’t help if it’s incompatible.

2. Flight Time: It’s All About the Specs

Someone asked me: “My 3S 2200 mAh battery—how long will it really fly?” Honestly, it depends on many factors. Flight time is affected by four major things:

1. Payload: More weight = faster power drain.
2. Battery capacity (mAh): Higher capacity usually means longer endurance.
3. Voltage (V): Low voltage = insufficient power; high voltage = higher consumption.
4. Environmental conditions: Wind, temperature, and thin air quietly eat up energy.

You’ll notice, a drone rated for 30 minutes of flight may only last 20 minutes in cold wind. Add a camera or extra battery mount? That 20 minutes could drop below 15.

Here’s a quick comparison of common drone batteries and their theoretical flight times:

Battery Type	Capacity (mAh)	Voltage (V)	Discharge Rate (C)	Theoretical Flight Time
3S LiPo	2200	11.1	25C	~15-18 min
4S LiPo	5200	14.8	30C	~30-35 min
6S LiPo	10000	22.2	35C	~45-50 min
6S Li-ion	15000	22.2	20C	~60 min

Keep in mind, these are theoretical. Real-world flight is influenced by wind, pilot habits, and payload.

3. How to Choose the Right Drone Battery

This is critical. Many pilots fly for years without really understanding battery choice. Picking a battery isn’t just about capacity—it’s about balancing:

1. Voltage matching
   • Too low = weak power; too high = potential motor damage.
   • Examples: 3S = 11.1V, 4S = 14.8V, 6S = 22.2V—must match your drone design.
2. Capacity vs Weight
   • Bigger capacity = longer flight, but heavier weight.
   • Efficiency and payload are linked; too heavy can actually reduce flight time.
3. Discharge rate (C rating)
   • Determines how much current the battery can safely deliver.
   • High-performance or racing drones need high C; low C = voltage sag, weak power.
4. Size and connector type
   • Battery too big or connector incompatible = won’t fit or poor contact.
5. Custom drone batteries
   • For specialized tasks like industrial inspection or long-endurance mapping, a custom battery with a proper BMS is far more reliable than standard batteries.
   • Can tailor capacity, C rating, size, and temperature tolerance to match your mission.

In short: choosing a battery is about balancing voltage, capacity, C rating, weight, and mission requirements. A little care here can make a huge difference in flight experience.

4. Tips to Extend Battery Life

• Keep storage charge moderate: 40%-60% when not flying is safest.
• Avoid extreme temperatures: Too hot = swelling; too cold = low output.
• Don’t overcharge or fully discharge: LiPo below 3.0 V/cell is dangerous; above 4.2 V long-term is bad too.
• Keep connectors clean: Ensures smooth current flow.
• Carry a spare: Especially for mapping or construction tasks—you don’t want red lights flashing mid-air.

5. Practical, Fragmented Tips from Experience

• Lightweight is king: Reducing payload = longer flight. Even a filter can shave minutes off.
• Plan your flights: Pre-set missions are better than random flying. Repeats waste battery.
• Weather awareness: Strong winds double consumption; cold = lower output; high humidity = possible short circuits.
• Custom drone batteries: If you need long endurance or heavy loads, investing in a custom battery is worth it.

6. Summary

Buying a drone battery isn’t about maxing out capacity or paying the most. Choosing the right battery, especially a custom drone battery, depends on:

• Matching voltage and connector type
• Balancing capacity and weight
• Ensuring discharge rate (C rating) meets power needs
• Matching flight mission (racing, mapping, industrial inspection)
• Proper maintenance and storage

The battery is the lifeline of your drone. Treat it well, and it’ll reward you with smoother, longer flights.

If you’ve ever flown FPV drones, raced RC cars, or tinkered with high-power RC planes, you’ve probably bumped into the 4S 1500mAh 100C LiPo Battery with XT60 Connector. It’s one of those batteries that seems small, but packs a punch. I’ve used a few myself, and it’s worth understanding what you’re actually getting before you buy.

Specs at a Glance

Let’s break down the numbers, because they really matter:

• Voltage: 4S means four cells in series. Each cell has a nominal 3.7V, so total is about 14.8V.
• Capacity: 1500mAh – or 1.5Ah. Enough to give decent flight time without being a weight nightmare.
• Discharge Rate (C-rate): 100C continuous. That’s roughly 150A if you do the math (1.5 × 100). Some batteries also list a burst rating up to 200C. That’s for short, power moments.
• Connector: XT60. Standard, reliable, good for mid-to-high currents.
• Weight and size: Around 180–190g, dimensions roughly 35×40×77mm. Small variations exist depending on brand.
• Charge rate: Usually up to 5C max, meaning 7.5A for a 1500mAh battery. I generally stick to 1–2C to be safe.

Why People Like Them

Honestly, there’s a reason this battery is popular:

• High Discharge – That 100C rating isn’t just for show. Fast FPV quads, RC planes, or cars that want a sharp burst of power will love it. Burst ratings let you push even harder, short-term.
• Decent Capacity – 1500mAh is a sweet spot. Not too light, not too heavy. Enough juice for a few intense flights without bogging down your craft.
• XT60 Connector – Widely used, easy to swap, won’t fry itself under moderate load.
• Compact & Lightweight – Fits in mid-sized drones, keeps balance and agility intact.

What It’s Good For

If you’re wondering whether this battery fits your setup:

• FPV racing drones – especially 5-inch, 250mm frames. High current, quick response.
• RC planes or helicopters – aggressive maneuvers, short power bursts.
• High-speed RC cars – instant acceleration and top-end performance.
• Drones where you want a compromise between flight time and agility.

In short, anywhere you need high current without killing mobility, this battery works.

Downsides & Things to Watch

Nothing’s perfect. Even this one has trade-offs:

• Price – good batteries cost more. Don’t expect to find a 100C LiPo for cheap.
• Weight – 180–190g Drone battery is fine for most drones, but mini quads might feel heavy.
• Voltage limits – can’t put this in something rated for 3S (11.1V). That would be a problem.
• C-rate isn’t magic – 100C is theoretical. Real output depends on heat, internal resistance, and build quality.
• Safety – LiPos are finicky. Overcharge, over-discharge, or physical damage? Fire or swelling is possible. Charge in a safe place, monitor, never leave unattended.
• Storage – keep them at 3.7–3.9V per cell if not using for a while, or you’ll degrade the battery.

Digging Into the Numbers

• Voltage: 4S = 14.8V. Good for high-power setups.
• Capacity: 1500mAh balances weight and flight time. Bigger capacity = more time but heavier.
• 100C discharge: handles high-current draws for fast, aggressive use. Burst can go even higher.
• XT60: works, reliable, widely available.
• Charge rate: max 5C, safe practice is 1–2C.

Buying Tips

A few things I learned after testing these:

1. Match your device – check max voltage and current. Don’t force a 4S into a 3S setup.
2. Size & weight – make sure it fits your frame, battery compartment, or chassis. Don’t just eyeball it.
3. Brand matters – Rotor Riot, RDQ, CNHL are solid bets. Unknown brands? Maybe, but check reviews.
4. Connector & wires – XT60 is fine, but make sure wires are thick enough for your current draw.
5. Safety first – charge on fireproof surfaces, monitor while charging, discard if swollen/damaged.
6. Value vs performance – if you’re not racing or pushing max currents, a lower C-rate battery may be plenty.

Bottom Line

The 4S 1500mAh 100C LiPo UAV Battery with XT60 Connector is a versatile, powerful option for FPV drones, RC planes, and high-speed cars. It’s not the cheapest, and you need to respect LiPo safety, but for mid-sized models and aggressive setups, it delivers. Light enough for maneuverability, strong enough for instant power. Follow safety protocols, pick a trusted brand, and you’ve got a reliable battery that won’t disappoint.
