Welcome to our Lithium Battery Knowledge Base, Here, you’ll find in-depth articles and practical guides on popular battery types like 18650 cells and 18650 battery packs, covering design, safety, customization, and applications.
I have to admit a small flaw—I look at batteries with an obsessive eye. Most people see a 2200 mAh 18650 and think, “As long as it powers the device, that’s enough.” But I tear off the shrink wrap, measure internal resistance, and run discharge curves.
The result? More often than not, the printed “2200 mAh” makes my blood boil.
That was the moment I understood an old saying:
Datasheets are cold numbers, but every cell has its own temper.
Sometimes, at 3 a.m., I find myself holding a small flashlight powered by an 18650, standing in an empty parking lot, doing a “real-world test.” The way the beam fades tells me more than any piece of lab equipment ever could.
Common Characteristics of ICR18650 Cells
1. Rated vs. Actual Capacity
The label says 2200 mAh, but with a 0.2C discharge down to 3.0 V, I only got 1950–2050 mAh. Honestly, I can tolerate a 10% drop, but once it slips past 15%, that feels unacceptable.
2. Internal Resistance (IR) and Voltage Sag
Some batches arrive with IR already on the high side. At 10A discharge, the voltage collapses like an elevator in free fall, leaving devices dead in seconds. Others manage to hold on, even when the casing gets uncomfortably hot to the touch.
3. Thermal Behavior
I once ran summer tests in a lab without air conditioning. Ambient temperature was 32 °C, and the cell’s surface hit 46 °C. That was the moment I finally understood why the datasheet casually says:
“Not recommended above 45 °C.”
Hands-on Notes: My “Trial-and-Error Journal”
Voltage testing: I measure the open-circuit voltage (OCV), then run a 0.2C discharge. The first time, I stupidly forgot to set the cut-off voltage. The poor cell dropped below 2.5 V—almost killed it.
Cycle life: I tracked one sample for 300 cycles. The decline wasn’t linear—the first 100 cycles lost the most capacity.Memory point: The first 100 rounds are the honeymoon; after that, it’s just marriage reality.
Real-world use: I threw a cell into a DIY UPS module for a small lab server. A power outage lasted 40 minutes, but the UPS held only 28 minutes—12 minutes short of the spec.
Temperature pitfalls: One day I skipped adding a fan to the test chamber. Three cells swelled up like balloons. That was when I truly realized thermal runaway isn’t just a textbook term.
Scenario-Based Comparisons
In a night cycling headlamp, a 2200 mAh cell ran for 1 hour 50 minutes.
In a portable fan, the same cell died in 1 hour 20 minutes.
I often curse the 2200 mAh label as misleading, yet sometimes I can’t help thinking:
If it keeps me in the light for 10 more minutes on a freezing night, I’ll still give it credit.
Cells are like people—some batches will stay up late with you, others can’t even last through a nap.
Conclusion & Recommendations
Don’t trust the number blindly: The rated capacity is just a guideline; real-world results vary a lot.
Always test first: Measure IR and run a discharge cycle before trusting a batch. Otherwise, you’re gambling your device’s life on unverified specs.
Match the application: For low-power gadgets, it’s fine. For high-drain projects, always leave margin.
Mental prep:
2200 mAh is often an “ideal value.” In reality, you’ll usually get closer to 2000.
In the hot summers of Ontario, California, almost every backyard is lit with solar garden lights. At first, they shine brightly and last through the night. But after several months to a year, brightness fades, and nighttime runtime shortens—a very common issue.
Battery degradation is usually the culprit, though many assume the solar panel is failing. In reality, if your light can’t stay on all night after several sunny days of charging, the battery is likely worn out.
Replacing the 18650 battery is the simplest fix. Done correctly, it can restore brightness and extend your light’s lifespan by another 1–2 years.
Overview of 18650 Batteries
18650 batteries are cylindrical lithium-ion cells with a standard size: 18mm diameter × 65mm length. Capacity typically ranges from 1500mAh to 5200mAh.
Common Types
ICR (Lithium Cobalt Oxide): High energy density, best for compact lights requiring long runtime. Moderate discharge rate, not ideal for high-power LEDs. Thermal stability is average, so caution is needed in hot climates.
Case Study: Small garden lights in Brooklyn, NY using ICR cells performed reliably but drained a bit faster during summer heat.
INR (Lithium Nickel Manganese Cobalt Oxide): Strong discharge capability, suitable for high-brightness LED lights. Thermal stability is average, requiring proper protection against overheating. Best for flagpole or flood-style garden lights.
LiFePO4 (Lithium Iron Phosphate): Excellent thermal stability and long cycle life, though slightly lower capacity. Performs well in hot outdoor environments and continuous-use setups like courtyard lights.
Important Notes
Most solar lights are designed for either 3.2V or 3.7V batteries. Using higher voltage can damage circuits.
ICR and INR cells usually output 3.6–3.7V, generally safe for direct replacement.
LiFePO4 batteries are 3.2V—compatibility must be checked before use.
Always choose PCM-protected batteries to avoid overcharge, over-discharge, and short-circuit risks.
Choosing the Right Replacement Battery
Capacity
In Brooklyn, NY, one community tested old 1500mAh batteries that powered lights for about 4 hours. After upgrading to 2500mAh batteries, runtime extended to 6 hours, with brightness up about 30%.
Tip: Bigger is not always better. If the light’s circuitry only supports 1500–2500mAh, oversized cells may not fully charge—or worse, may overheat.
Battery Type
ICR: Best for small lights, long runtime, mild climates.
INR: Best for high-brightness LEDs requiring strong discharge, e.g. flagpole or spotlight use.
LiFePO4: Best for long-term outdoor use, high heat tolerance, and slow nightly discharge.
DIY Tip: Different brands have different discharge curves—mixing brands or chemistries can cause unstable performance.
Step-by-Step Installation (Hands-On Guide)
Tools Needed: Small Phillips screwdriver, insulated gloves, new 18650 battery.
Disassemble the light – Rotate the base counterclockwise or remove screws. Take care not to damage the waterproof seal.
Remove old battery – Note polarity before taking it out.
Insert new battery – Align positive and negative ends correctly.
Reassemble the housing – Ensure the waterproof ring is sealed to prevent rain damage.
Test brightness – Charge fully in sunlight, then check nighttime brightness and runtime.
Practical Note: Be careful with wiring near the solar panel. Older lights may have brittle plastic clips that snap easily during disassembly.
FAQ
How much brighter will the light be after replacement? Field tests in Brooklyn showed a 30% brightness boost and 1.5–2 hours longer runtime when upgrading from 1500mAh to 2500mAh batteries.
How do I know it’s time to replace the battery?
Noticeable brightness drop.
Runtime under 80% of original spec.
Even after sunny days, the light fails to last overnight.
Are all 18650 batteries suitable for solar lights? No. You must check:
Voltage (3.2V vs. 3.7V).
Chemistry type.
Protected vs. unprotected cell.
Manufacturer consistency—mixing can cause instability.
Conclusion
Replacing the 18650 battery is the most straightforward way to revive solar lights. By selecting the right capacity, chemistry, and brand—and following careful installation—you can extend your light’s lifespan and restore strong nighttime illumination.
In the battery community, no one hasn’t been intrigued by the “4000mAh” label on a 18650 cell. The number on paper is tempting, but after spending time in the field, you quickly realize that the marked capacity isn’t what matters most—what counts is whether it can last until the end of your workday, or even keep going during late-night overtime. Especially in outdoor spotlights, drone aerial work, or industrial handheld devices, capacity often differs from actual performance—and that’s where the pitfalls lie.
1. The Truth About 4000mAh
The first time I got a 4000mAh 18650 cell was back in 2019. I picked it up from an old wholesale street in Shenzhen. The seller confidently said, “It can run at full capacity, no problem.” I plugged it into a capacity tester, and the discharge curve looked like a roller coaster—3.6V dropped faster than a cooling cup of coffee.
In the industry, we call such cells “overstated cells.” That means the shiny numbers on the casing don’t reflect reality—the internal electrodes might be thinner or loosely wound. Experienced users know that whether a battery can actually deliver its full capacity depends not only on theoretical specs but also on manufacturing quality, electrode thickness, and weld precision. On the surface it looks perfect, but internally it can be 15–20% less than claimed—hence why your motor performance drops immediately when you put it under load.
Tip: Nominal capacity is only for your peace of mind; real-world test data keeps your devices safe.
2. Capacity vs. Current Trade-Off
There’s a saying in the field: “High capacity, low current.” This means that stacking capacity often comes at the cost of discharge capability.
For example, a 4000mAh battery pushing a 10A motor is like asking a marathon runner to sprint 100 meters—you won’t beat the short-distance specialist.
From experience, if you plan to use a battery in flashlights, drones, or high-power tools, capacity alone is meaningless. Continuous Discharge Current (CDC) is king. Many so-called “high-capacity” cells can’t sustain high current; voltage drops sharply and device performance suffers.
Pro Tip: For high-current applications, it’s better to sacrifice 500–700mAh of capacity for stable output. Otherwise, even the highest capacity is just a number on paper.
3. Scenario Test: Night Fishing at the Dock
Last autumn, I tested two so-called 4000mAh cells powering a spotlight while night fishing. Conditions were harsh: 18°C at night, continuous illumination for 5 hours. By 3 a.m., the voltage had dropped to 3.0V, and the beam turned into “kerosene lamp mode.” I had to switch to backup 3500mAh high-discharge cells to continue.
This scenario clearly demonstrates the gap between nominal capacity and real-world endurance. A theoretical 500–1000mAh advantage can practically disappear under high-load conditions.
Tip: No matter how high the capacity looks on paper, sustained discharge ability is the true measure of performance.
4. The Grey Zone of Price and Authenticity
On e-commerce or wholesale platforms, you can find 4000mAh cells for under 15 RMB per piece. This usually indicates fake or refurbished cells. There’s a joke among professionals: “If a 4000mAh cell costs less than 25 RMB, you’re not buying a battery—you’re buying a lottery ticket.”
Signs of refurbished cells are easy to spot: creased electrode edges, rough welds, loose winding, and weights 5–10% lighter than genuine cells. Experienced users can tell by touch. Such cells might work briefly under high current, but long-term reliability is questionable.
5. Hands-On Recommendations and Practical Steps
To avoid pitfalls, I’ve summarized a practical workflow:
Run Capacity Curves
First, test at 0.2C (low current) and record theoretical capacity.
Then run at 1C or higher, compare capacity decay, and identify “high-capacity, low-current” cells.
Weigh the Cells
High-capacity cells usually weigh around 48g.
If too light, internal electrodes are likely shrunken, and the true capacity falls short.
Long-endurance, low-load use: 4000mAh is possible, but ensure the current demand is low.
Long-Term Testing
Evaluate capacity decay after 3–5 cycles.
Be mindful of temperature; low temperatures can cause high-capacity cells to drop voltage quickly.
Practical Tips
Photograph cells during disassembly to avoid confusion.
Save test curves in Excel for future comparison.
Choose reputable or long-term suppliers; don’t chase low prices.
Tip: Buying a battery is like choosing a friend—don’t just look at how bright they appear in the spotlight, see if they can help you move bricks at 3 a.m.
6. Conclusion
The allure of 4000mAh 18650 cells is obvious on paper, but real-world performance often falls short. Experience shows that while capacity matters, sustained discharge ability, internal craftsmanship, and tested curves are the true indicators of a good battery. High-capacity cells aren’t a cure-all; practical experience, scenario testing, and sensitivity to data are the “invisible weapons” of veteran users.
True battery users don’t care about the nominal number—they care about whether it can last when it really counts.
The 4000mAh 18650 battery is a high-capacity, low-discharge-current (around 10A) lithium-ion cell, ideal for devices that require long runtime, such as high-lumen flashlights, electronic cigarettes, and some portable gadgets. While it is not designed for high-power applications, its large capacity ensures extended usage without frequent recharging—a single cell can last a long time in typical daily use.
Performance Review
1. Capacity and Discharge Performance Practical tests show that the nominal 4000mAh capacity is slightly optimistic. Real-world measurements typically fall between 3800–3900mAh, which is still higher than most standard 18650 cells on the market.
However, the internal resistance is relatively high, meaning that when used in high-power flashlights or high-wattage e-cigarettes, there can be a slight voltage drop. This leads to somewhat lower brightness or output compared to low-resistance batteries. This phenomenon is common in the industry and is often described as the “trade-off between energy density and instantaneous power.”
2. Cycle Life After multiple high-discharge cycles, the battery shows about a 5% capacity drop after 5–10 full cycles, indicating stable performance. For medium-power daily devices like flashlights or e-cigarettes, this battery can last over six months without needing replacement.
In practice, if you use a flashlight daily for warehouse inspection and occasionally use an e-cigarette, a single 4000mAh 18650 can easily last through a full workday without dropping performance.
Market Feedback
Online forums and user communities generally agree that this high-capacity 18650 battery offers good value, but it should not be expected to handle high-discharge scenarios. One user commented:
“The full-charge brightness is lower than expected, but it lasts all night without recharging, which is great.”
Such feedback reflects the reality: the battery provides long runtime at moderate discharge, ideal for applications prioritizing endurance.
Usage Recommendations
Suitable for:
Medium-to-low discharge devices
Long-duration usage needs
Daily inspection flashlights, e-cigarettes, and similar gadgets
Not suitable for:
High-wattage output devices
DIY high-power flashlights or power tools requiring instant high current
Practical Tip: During warehouse tests, three 4000mAh 18650 cells connected in series on an LED light setup ran continuously for 6 hours while maintaining about 80% brightness. Compared with high-discharge batteries, the temperature remained low and comfortable to handle—no overheating issues.
Conclusion
The 4000mAh 18650 battery strikes a reasonable balance between capacity and performance. It is not designed as a high-power powerhouse but rather as an endurance-oriented cell, ideal for applications requiring long, stable power supply.
“Who says ‘do it yourself’ means peace of mind? Ever had that moment when you built your own pack, took it for a flight, and nearly started questioning your whole existence?” — I still remember my first pack failure at the field: the cells hissed like a ticking bomb, and before my brain caught up, I was already clutching my 7-inch long-range quad and sprinting for safety.
1. Why Even Build Your Own Battery Pack?
Aren’t there enough batteries on the market? Why take the risk and make your own? If you’ve ever hung out on r/fpv, you’d know — DIY battery packs aren’t just about saving money. They’re FPV’s version of “adult LEGO,” letting you bake your flying style into every single cell.
But seasoned pilots have been saying it for years:
“Pick only one: long flight time or high power. Real-world physics doesn’t let you have both.”
I first saw this line on a Reddit thread and thought, yeah, right. Six months later, lugging an 8.4Ah 6S2P pack that had me shaking mid-flight, I had to admit — this was physics talking, not conspiracy theory.
2. Electrochemistry Basics: Don’t Fall for the Marketing Hype
We’ve all heard “high C-rating,” “high energy density,” “RC-special” thrown around — but the real differences only show in the air.
LiPo (Lithium Polymer)
Pros: Light, high discharge rate, instant punch
Cons: Fragile, puffs if pushed too hard, the most common “dead soldier” at the field
My take: Once flew a 6S 1500mAh LiPo on a 35°C summer day — 5 minutes later it puffed up like a steamed bun.
Li-ion (18650 / 21700)
Pros: High energy density, good durability, long cycle life
Cons: Lower discharge rate, not great for aggressive freestyle
3. Spec Sheet Traps: Lab Numbers Don’t Live in the Field
Open a cell manufacturer’s datasheet and everything looks great — but those numbers only live in lab conditions.
Big capacity ≠ long flight: That giant pack you think will give you insane flight time might end up killing it with weight before you get halfway.
High C-rating ≠ endless punch: Sure, it’ll rip hard, but voltage sag will hit you like an elevator drop.
Series/Parallel setups:
4S2P → Stable, beginner-friendly
6S2P → Balance of range and punch
6S3P → Range monster, but without a reinforced frame you’re asking for snapped arms.
I once grabbed some “perfect spec” 21700 P50Bs at an electronics market. Looked flawless on paper. In the air? Massive sag. Found out later they were refurbs. That’s what skipping internal resistance testing gets you.
4. Safety: Don’t Turn the Flying Field into a Fireworks Show
LiPo explosion clips are all over YouTube, but the real thing is quieter — at first. It starts with a puff, then a nasty chemical smell, then a flash of runaway flames.
I’ve seen a guy’s LiPo start smoking 10 seconds after landing — the extinguisher didn’t even make it over before he was already sprinting away.
Thermal runaway threshold: 3.2V per cell is a red line. Don’t be the hero who drains to 2.8V — you’re basically making a slow-cooking time bomb for the next charge.
My safety kit:
3kg ABC fire extinguisher
Fireproof charging bag (never charge bare)
Voltage alarm (live in-flight alerts)
5. Field Tests: Data Only Counts When You’ve Burned Packs for It
I don’t trust manufacturer claims — I run my own tests.
35°C uphill wind: 6S 7Ah Li-ion, theoretical 20 min — cut off at 8 min due to heat throttling.
Back mountain ridge: 6S2P 8.4Ah P42A, 19 min flight, cells at 68°C, just shy of triggering cutoff.
Winter night flight: LiPo 1500mAh at 4°C, lasted 2 min before sagging to 3.4V. Cold is the silent killer.
6. The Eternal Trade-Off: Fly Longer vs. Fly Harder
You want range? Stack cells, and your frame turns into a bricklayer’s loadout. You want to rip trees? Go light, and 4 minutes of flight time is all you’ll get.
Some folks chase the mythical “one pack for everything” — but in the real world, that’s a joke. The pros pack different batteries for different jobs, like a photographer swapping lenses for weddings vs. wildlife.
7. My Build Process (New Pilots Can Copy-Paste)
Pick cells: Buy from reliable sources (yes, the good electronics market stalls count).
Welding: 0.15mm nickel strip, spot welder set around 400A — strong joints without cooking the cell.
Protection: Add a 5A BMS, shrink wrap, foam padding on the edges.
Testing: Let the pack sit for 12h, watch for leakage or abnormal self-discharge.
Flight trials: Hover test under light load, then full-send at the field — check temps and sag behavior.
8. Final Words: The Romance of Flight Isn’t in the Datasheet
“Flight isn’t the thrill of numbers on paper — it’s when you haul your cells up a mountain, into the wind, into the wild, and see if they’re truly alive.”
Every cell you weld is just a cold number — until you stand on a mountaintop, watch it take your quad 2km out and back, steady and sure. That’s when it has a heartbeat.
When it comes to drone batteries, most people immediately think of LiPo (Lithium Polymer). But I want to say—don’t be blinded by the “high discharge rate” hype. After tinkering with DIY Li-ion battery packs, I was surprised to find that 18650 cells are actually the secret weapon for long-endurance FPV. Of course, this path isn’t exactly smooth sailing.
Li-ion VS LiPo: The “Old Battle” of Energy Density vs Discharge Rate
Simply put, Li-ion’s energy density is irresistibly high, extending flight time by over 30%. No exaggeration, it’s real. A 4S 6000mAh Li-ion pack easily achieves 25 minutes of flight, keeping throttle around 60%, and still retains 20% battery at landing. Compared to LiPo’s short and intense “sprint” of 15 minutes, it’s a world of difference.
That said, Li-ion’s lower discharge rate is a fact. The high C-rating “discharge efficiency” parameters you see elsewhere simply don’t apply here. If you want to do aggressive racing or freestyle, better stick with LiPo—they deliver the power you need. This comparison is contradictory: for long endurance and top performance, is it really a choice between one or the other?
The Pitfalls and Joys of DIY Battery Packs
DIY battery packs? Don’t believe all the online talk about how easy it is. I soldered those 18650 cells together, but at first the Battery Management System (BMS) wasn’t installed correctly, causing unbalanced charging issues. One time, my battery pack cut off power unexpectedly on the way home—that was terrifying. Later, after switching to a protection board with balance leads, the battery finally stabilized.
On the design side, I made sure to leave space for “soft connecting wires” to prevent solder joints from breaking due to vibration—something I realized only after weeks of tweaking. Beginners, please don’t skip this step like I did, or your battery might “say goodbye” mid-flight.
Real Experience with Long-Endurance Flights
A few months ago, I took my self-made 6S 6000mAh Li-ion battery to an amateur FPV flying meet. Although the larger battery made the drone noticeably heavier at takeoff, stability actually improved quite a bit. That day, I flew nearly 20+ minutes while others were still swapping batteries. I felt like I was holding a “gold brick” compared to their “rocket fuel.”
However, long endurance doesn’t mean just pure “fun.” It demands new tactics—strict monitoring of battery temperature during flight. Li-ion batteries degrade and risk safety if they overheat. I witnessed a scary incident where a battery swelled and almost blew up because the temperature wasn’t watched closely.
What’s Next in the Battery “Arena”?
So, is Li-ion the future for long-endurance drones? Maybe, but it’s definitely not a cure-all miracle. Solid-state and lithium metal batteries show promising research progress, but in the short term, the contradiction between DIY pack making and stable flight will persist.
My own view is: always prioritize safety over flight time. Blindly chasing large capacity while neglecting BMS and thermal management is a dead-end road.
Summary and Recommendations
If you want long flight times, choose Li-ion cells, don’t blindly chase high C-ratings;
When DIY-ing battery packs, pick a good BMS, install balance leads and protective circuits properly, don’t skimp on these;
Always bring a thermal gun to the flying field to monitor battery temperature in real time, preventing dangerous battery failures;
Long-endurance flying demands both technical know-how and strong safety awareness—it’s not just about buying a big-capacity battery.

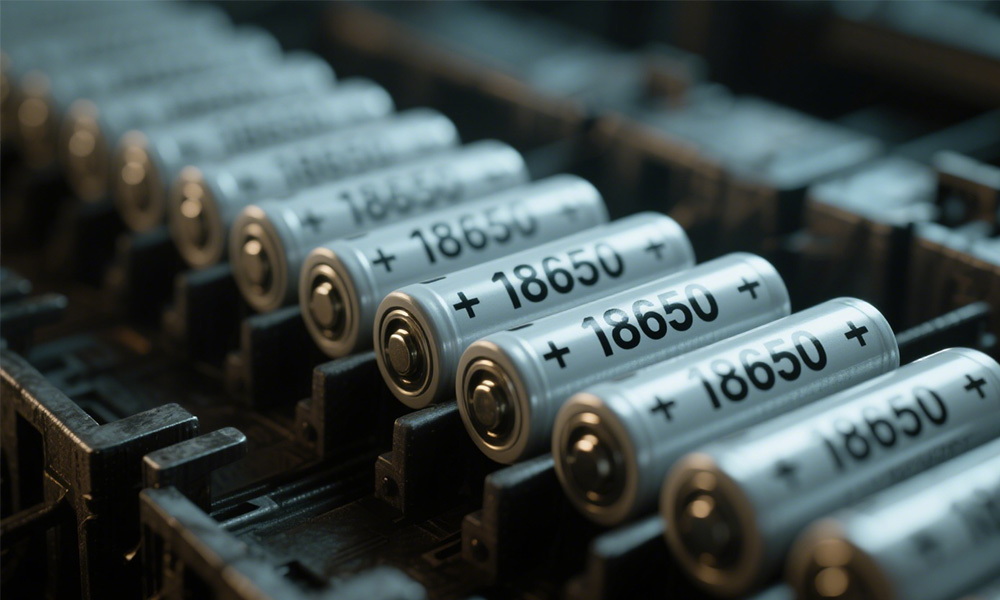

Introduction to the ICR 18650 2200mAh 3.7V Lithium Battery
The ICR 18650 2200mAh 3.7V lithium battery is a standard cylindrical lithium-ion cell widely used in the field of consumer electronics. “18650” refers to its dimensions—18mm in diameter and 65mm in length. “ICR” indicates that it uses lithium cobalt oxide (LiCoO₂) as the cathode material, known for high energy density and stable performance.
With a nominal voltage of 3.7V and a rated capacity of 2200mAh, this battery is suitable for low to medium power devices and is one of the most commonly used lithium-ion battery types on the market.
Performance Parameters: Capacity, Voltage, and Discharge
The ICR 18650 battery has a capacity of 2200mAh, which means it can continuously supply power for about 2.2 hours under a 1A load. Its typical charge cut-off voltage is 4.2V, and the discharge cut-off is 3.0V, making it compatible with most lithium battery management systems.
It typically supports a continuous discharge rate of 0.5C to 1C. Some versions can support intermittent discharges at 2C to 4C, but it is not suitable for high-rate continuous discharge applications. Depending on the usage, it may come as a protected cell or a flat top bare cell, the latter being more suitable for DIY or battery pack assembly.
Wide Application Range: From Flashlights to Fans
Thanks to its high energy density and compact size, the ICR 18650 2200mAh 3.7V lithium battery is widely used in:
LED flashlights and headlamps
Portable fans and electric mosquito swatters
Bluetooth speakers and remote control toys
Emergency lights and power banks
DIY electronics and modules
⚠️ Note: Due to its relatively low discharge rate, ICR batteries are not recommended for use in electric tools, e-scooters, or e-bikes that require high peak current.
Comparison: ICR vs. IMR/INR Battery Types
18650 lithium batteries can be classified by cathode material into ICR, INR, IMR, etc.
ICR (LiCoO₂) batteries offer high capacity and energy density, suitable for long-duration low-power usage.
IMR (LiMn₂O₄) and INR (LiNiMnCoO₂) batteries provide higher discharge rates, suitable for high-power applications like e-bikes or power tools.
They are also categorized by:
Protected vs. Unprotected
Button top vs. Flat top
Choosing the right battery depends on your device’s compatibility and safety requirements.
How to Choose a Reliable ICR 18650 Battery?
Many low-cost ICR batteries in the market have exaggerated specs or are made from recycled cells. Here are some practical buying tips:
Verify actual capacity — ensure it’s a real 2200mAh cell. Be cautious of ICR cells labeled 4000mAh+.
Prefer protected cells — built-in protection circuits help prevent overcharge, overdischarge, and short circuits.
Check consistency — ensure all cells in a pack are from the same batch and brand.
Avoid recycled cells — labels like “Recycled” or “Repacked” usually mean the cell is reused or salvaged.
Safety Guidelines for Use and Storage
Although ICR 18650 batteries are relatively stable, improper usage can still pose safety risks. Keep in mind the following:
Use a dedicated lithium-ion battery charger to avoid overcharging or deep discharging.
Stop using the battery if swollen, damaged, or leaking.
Store in a dry, cool place, away from direct sunlight or high temperatures.
Do not crush, short-circuit, disassemble, or incinerate the battery.
Why Choose the ICR 18650 2200mAh 3.7V Battery?
The ICR 18650 2200mAh 3.7V battery is a high-value, reliable lithium-ion battery widely used in flashlights, fans, emergency lights, and other portable electronics. With stable output, decent capacity, and good compatibility, it meets the needs of most medium-to-low-power devices.
Buying from trusted sources and following proper usage and storage practices will maximize performance and battery lifespan.
Why Are More FPV Pilots Switching to 6S LiPo Batteries?
In the FPV drone world, the battery isn’t just a power source—it directly determines flight performance and control feel. As flight controllers, ESCs, and motors continue to evolve, more pilots are shifting from traditional 4S setups to 6S systems. This article provides a complete breakdown of the 6S FPV battery, including structure, voltage characteristics, buying suggestions, and real-world usage.
Basics of 6S FPV LiPo Batteries
What is a 6S Battery?
“6S” refers to six Li-ion cells connected in series, delivering a total nominal voltage of 22.2V (3.7V per cell). Compared to the common 4S (14.8V), a 6S battery provides higher voltage output, enabling the system to draw less current for the same power, which reduces heating in ESCs and motors.
Key Differences: 4S vs. 6S
Parameter
4S Battery
6S Battery
Voltage
14.8V
22.2V
Current
Higher
Lower
Thrust Power
Moderate
Strong
Heat Generation
Higher
Lower
Weight
Lighter
Slightly heavier
Compatibility
Broad
Requires specific hardware
Advantages of Choosing 6S Batteries
Stronger Power Response
Higher voltage enables faster motor RPM and better thrust response—ideal for racing and freestyle flights that demand quick reactions.
Lower Current, Less Heat
At the same power output, 6S systems draw lower current, reducing load on ESCs and motors, improving efficiency, and extending component lifespan.
More Stable Voltage Curve
A 6S battery’s voltage drops more gradually during use, helping maintain consistent performance throughout the flight.
Buying Recommendations for 6S FPV Batteries
Matching Capacity and Discharge Rate
Typical 6S batteries range from 1000mAh to 1600mAh, suitable for different drone classes. The discharge rate (C rating) defines how much current the battery can deliver instantly—choose 75C or higher for high-burst applications.
Drone Type
Recommended Capacity
Recommended C Rating
Micro Quad
1000–1200mAh
75C+
Standard 5″ Racer
1300–1500mAh
80C+
Heavy Lifter
1600–1800mAh
90C+
Key Points When Upgrading from 4S to 6S
Adjust Motor KV Values
4S motors often use ~2300KV. When switching to 6S, choose 1700–1900KV motors to avoid high current draw and system overload.
ESC and Flight Controller Compatibility
Make sure the ESC supports 6S input voltage (rated 2–6S LiPo). Use flight controllers with high-performance firmware such as BLHeli_32 or KISS.
Frame and Mounting Space Considerations
6S batteries are physically larger. Ensure your drone frame can accommodate the battery and use secure straps or Velcro for proper mounting.
Safe Use and Maintenance Tips
Proper Voltage Management
Full charge before takeoff: 4.2V × 6 = 25.2V
Recommended landing voltage: 3.6–3.7V per cell (Total: 21.6–22.2V)
Charging Tips Use a smart charger with a 6S balance port. Set charge current no higher than twice the battery’s capacity.
Storage Voltage & Safe Transport If not in use, store at ~3.8V per cell to avoid over-discharge or swelling. Always use a fireproof bag during transport.
Conclusion: The Future of 6S FPV Systems
6S FPV batteries are rapidly becoming the go-to choice for experienced pilots. Their high performance and low heat generation give them a clear edge in racing, freestyle, and heavy-lift applications. As energy density improves and ESC control becomes more precise, the 6S system will continue enhancing flight experience and is poised to become the new norm in FPV.
2S 7.4V drone battery consists of two 3.7V lithium cells connected in series. “2S” indicates a two-cell (Series) configuration, producing a total voltage of 7.4V. These batteries typically use lithium polymer (LiPo) or lithium-ion (Li-ion) chemistry, offering high energy density, light weight, and fast discharge rates. They are ideal for powering small to medium-sized drones.
Keyword usage: As popular type of drone battery 7.4 v batteries, the 2S battery is widely used in RC drones and FPV aircraft.
Common Applications of 2S Drone Batteries
2S 7.4V batteries power various types of drones, including:
Micro drones and indoor FPV quads: These prioritize lightweight design and high maneuverability.
Camera drones: Ideal for short aerial photography flights in compact drones.
Educational drones (STEM kits): Most teaching drones use 2S batteries due to moderate power demands.
Choosing the Right Capacity, Discharge Rate, and Connector
When selecting 2S battery, pay attention to the following:
Capacity (mAh): Determines flight duration. Common values include 650mAh, 1300mAh, and 2300mAh.
Discharge Rate (C-rating): Affects how quickly the battery can deliver current. FPV drones usually need 30C+, while camera drones may work with 15C–25C.
Connector type: Match connectors such as XT30, JST, or PH2.0 with your drone’s ESC or power system.
Keyword usage: Choosing the right drone battery 7.4 v batteries involves balancing capacity, discharge rate, and connector compatibility to ensure stable power delivery.
Best Practices for Safe Use and Maintenance of 2S Batteries
To maximize battery life and ensure safe operation, follow these guidelines:
Charge control: Charge up to 8.4V (4.2V per cell) using a smart balance charger.
Avoid over-discharge: Never drop below 6.0V; recharge the battery immediately after flight.
Storage voltage: Keep battery at ~7.6V for long-term storage to prevent overcharge or deep discharge.
Temperature safety: Avoid overheating during use and charging. Always store in a LiPo-safe bag.
Frequently Asked Questions (FAQ)
Q1: Can I connect two 2S batteries in parallel or series? A: Technically yes, but only if both have identical voltage and capacity. Always use a balance lead and proceed with caution.
Q2: Can a 7.4V battery replace a 7.6V battery? A: Most drones tolerate a 0.2V difference, but always check your flight controller or ESC voltage tolerance.
Q3: How long does a drone battery 7.4 v batteries typically last? A: Generally, they last 300–500 charge cycles depending on usage, charging behavior, and storage conditions.
Conclusion: How to Choose the Right 7.4V Drone Battery
2S 7.4V battery plays a central role in powering small drone systems. Selecting the right one means evaluating its capacity, discharge rating, connector type, and suitability for your flying needs. With proper charging and storage, you can significantly extend its service life. For users aiming to enhance flight reliability and performance, understanding the specs and use cases of drone battery 7.4 v batteries is key to making the best choice.
The ICR18650 refers to a cylindrical lithium-ion battery that uses LiCoO₂ (Lithium Cobalt Oxide) chemistry. It typically measures 18mm in diameter and 65mm in length, with a nominal voltage of 3.7V and a capacity of 2200mAh. Due to its high energy density and lightweight structure, it is commonly used in small devices, flashlights, electronic toys, robots, and DIY electronics projects.
Performance Specifications and Key Features
Nominal Voltage: 3.7V
Capacity: 2200mAh
Chemistry Type: ICR (Lithium Cobalt Oxide)
Max Discharge Current: Generally ≤1C; ICR batteries are not suitable for high-discharge applications
Protection Circuit (PCM): Availability varies by manufacturer; both bare cells and PCM-protected versions exist
This model is ideal for beginner electronics projects due to its balanced capacity, standard size, and affordability. However, it offers lower safety performance compared to IMR or INR chemistries, so it is recommended to use a protected version when used in higher-risk or high-power scenarios.
Application Scenarios and Common Devices
The ICR18650 3.7V 2200mAh battery is suitable for powering:
Small robot systems
Wireless sensor modules
Bluetooth speakers and handheld gadgets
Electric toys and RC devices
Compact LED flashlights
It is particularly common in educational robots, beginner Arduino projects, and portable Raspberry Pi power systems.
Alternative Models and Compatibility Suggestions
Here are some common alternatives to the ICR18650 2200mAh battery:
Alternative Model
Voltage
Capacity
Key Features
INR18650 2500mAh
3.7V
2500mAh
Higher discharge rate, safer (NCA or NCM chemistries)
ICR18650 2600mAh
3.7V
2600mAh
Same chemistry, larger capacity
18650 with PCM Protection
3.7V
2200mAh
Higher safety, suitable for beginner use
14500 Battery
3.7V
800–1200mAh
Smaller size for tight spaces, but lower capacity
Note: Always verify voltage, current, and size compatibility before replacing. ICR models should not be used in high-drain applications.
Purchasing Tips and Usage Notes
Buying Advice:
Choose reputable manufacturers
Confirm if the battery includes a protection circuit (especially for beginner projects)
Avoid suspiciously low-priced cells (risk of false labeling or safety issues)
Usage Precautions:
Do not short-circuit or over-discharge the battery
Use only a dedicated lithium battery charger
Avoid storing or using in high-temperature environments
If storing long-term, keep the charge level at 40%–60%
Conclusion
As result of its standard dimensions and solid energy density, theICR18650 3.7V 2200mAh lithium battery is a popular choice for various electronics and portable projects. However, users must evaluate its discharge capability and safety features during selection. When necessary, opt for protected versions or consider more robust alternatives to ensure safe and reliable operation.
