Complete Guide to 36V Ebike Battery: Pros, Cons, Range and Real-Life Tips

Introduction

I’ve been riding e-bikes for a few years now. I started with a 36V system, tried other voltages later, and eventually came back to realize: 36V ebike battery can actually be pretty handy in certain situations. It has its pros, but also some limits. Below I’ve combined what I gathered from several articles with my own riding experience. Hopefully this helps if you’re choosing or using a 36V battery.

What is 36V Ebike Battery? Voltage, Capacity, and Energy Basics

A typical 36V battery, when fully charged, usually measures about 42V with a multimeter, and it cuts off around 30V when the BMS steps in.

The formula is simple:
36V × Ah (amp hours) = Wh (watt hours).

Wh is basically the number that tells you how far you can realistically ride. For example, a 36V 10Ah battery equals roughly 360Wh.

In practice, 36V batteries are often used for daily commuting or leisure riding. They’re not built for extreme speed or crazy torque, but on flat roads and mild hills, they get the job done. Higher voltage packs can give you stronger acceleration and climbing power, but not everyone needs that.

Pros and Cons + My Hands-On Impressions

Pros

1. Affordable & widely compatible
   36V systems are super common, with plenty of controllers and motors designed around them. This makes it easier to match components and you don’t have to worry much about overvoltage frying the controller.
2. Lower heat & safer stress levels
   Since it’s not a high-voltage system, heat build-up is usually less of an issue during city rides with stop-and-go traffic. I’ve noticed this in hot weather commuting — my 36V setup didn’t make the controller burning hot to the touch like some higher voltage builds.
3. Good balance between weight & size
   For the same Wh capacity, 36V batteries tend to be reasonably compact and not too heavy. This matters a lot if you need to carry your bike upstairs, like I do.

Cons / Things to Watch Out For

1. Limited climbing and acceleration
   On steep hills or when carrying extra load, a 36V battery feels a bit sluggish. One time I went full throttle on a steep incline and the bike just crawled instead of surging forward.
2. Range varies a lot depending on assist level
   If you’re constantly riding on max assist or full throttle, your Wh will vanish quickly. The “theoretical range” on paper rarely matches the real ride.
3. BMS cut-off quirks
   If the BMS lets the voltage drop too low, it can damage the cells. But if it’s too conservative, it might shut you down early. I’ve had a ride where the display still showed a bit of battery left, but the BMS just cut power — not fun.
4. Charger compatibility matters
   The wrong charger or poor charging environment can reduce efficiency and shorten battery life. Fast charging also means more heat, so let the pack cool down before and after.

Range Estimates & Real-World Example

Here’s a quick table for typical capacities, along with my own riding results.

My ride example:
With a 36V 10Ah battery, riding in the city with light slopes and medium assist (not full throttle), I usually got around 40 km per charge. But on a day where I carried a passenger, rode multiple hills, and stayed on high assist, it dropped to about 28 km — a big difference.

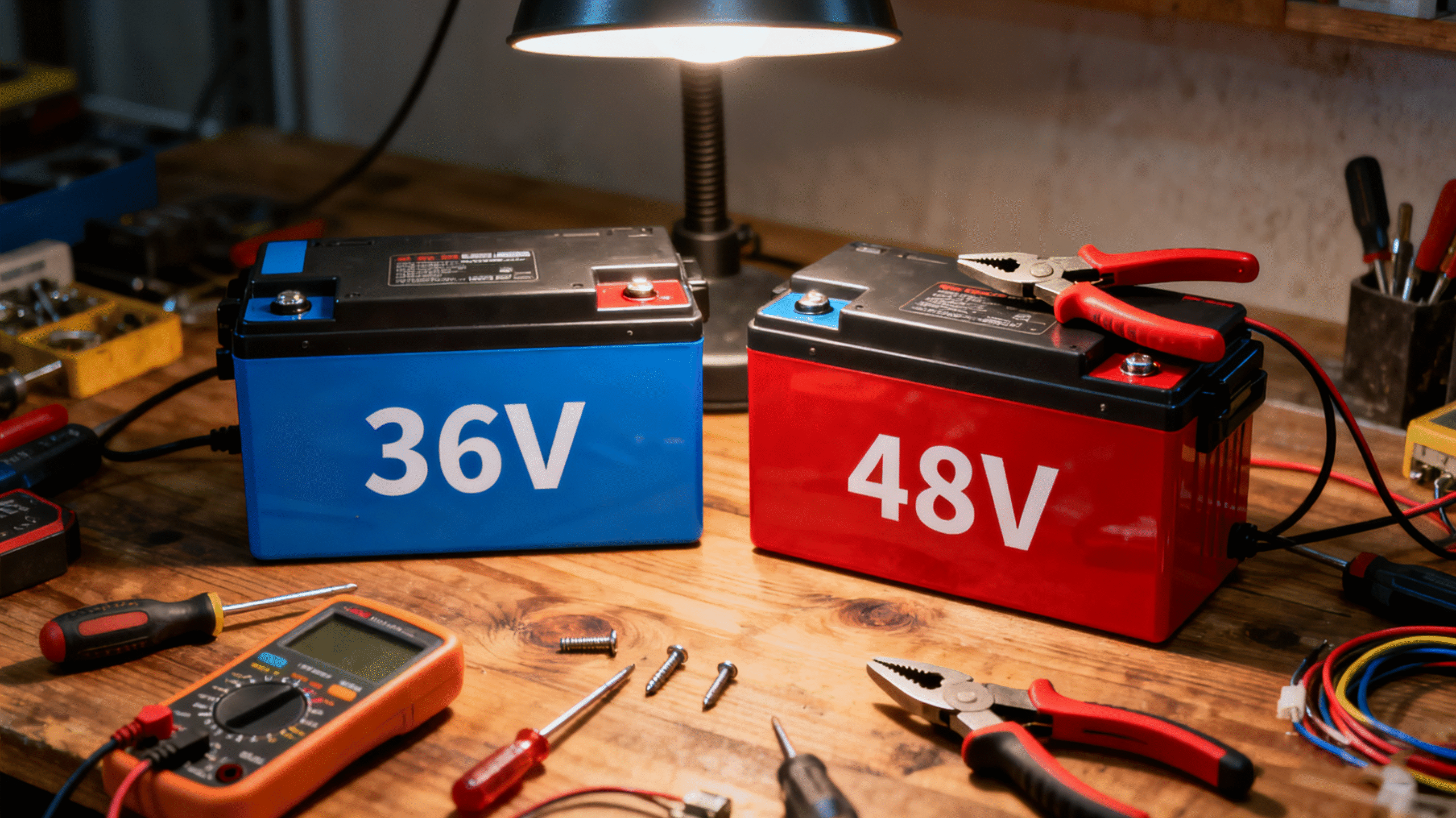

36V vs 48V Ebike Battery Comparison

Buying & Maintenance Tips

Some lessons I’ve learned, plus advice often hidden in articles:

1. Match your controller and motor
   Check the controller’s voltage range and the motor’s safe limits. Don’t risk overheating or damaging them.
2. Go a bit higher than your daily need
   If your commute is 40 km, a 10Ah might be borderline. A little extra capacity goes a long way.
3. Wiring & connectors matter
   Loose, cheap, or non-waterproof connectors are weak points. Pay attention here, especially with budget batteries.
4. Charging habits
   • Don’t always drain it near empty. Even if your display shows a little left, better recharge earlier.
   • Let the pack “rest” after a ride before plugging in, especially if it’s warm.
   • For storage, keep it around 30–60% charge and avoid high heat.
5. Check voltages occasionally
   A multimeter can show if total voltage or cell balance is healthy. Look out for swelling, heat, or unstable output.

Conclusion

If your rides are mostly commuting, urban, or light terrain with average loads, a 36V ebike battery is a solid and reliable choice. It’s affordable, widely supported, and easy to maintain.

But if you regularly climb steep hills, carry heavy loads, or crave high speed and strong acceleration, you might want to look at higher voltage systems — or at least beef up your 36V setup with higher capacity cells and robust components.

Electric Bike 36V 10Ah Water Bottle Style18650 Lithium Battery Pack

September 9, 2025

High-performance 36V 10Ah water bottle lithium battery for electric bikes. Lightweight 3.5kg, fast charging in 1.5–2 hours, safe & durable with up to 500 cycles. Ideal for commuting and long rides.

33140 Cylindrical LiFePO₄ Power Battery Cell

August 22, 2025

Apsenx 33140 LiFePO4 battery cell (14500mAh, 3.2V). High capacity, long cycle life, safe chemistry. Ideal for ESS, EV, UPS, and solar storage.

Factory Custom 32700 3.2V 6000mAh Lifepo4 Battery Mannfacturer Supplier

August 11, 2025

Reliable 32700 LiFePO4 battery with 6000mAh capacity, 2000+ cycles, and advanced safety features. Perfect for EVs, solar storage, and backup power solutions.

China 36V 6600mAh Electric Scooter Battery Manufacturer Supplier

August 11, 2025

Durable 36V 6600mAh electric scooter battery with 500+ cycles. High energy density, fast delivery, OEM/ODM customization. Perfect M365 replacement.

Wholesale 21700 3.7V 5000mAh Lithium-Ion Cells Manufacturer Supplier

August 11, 2025

Discover premium wholesale 21700 3.7V 5000mAh lithium-ion cells from a trusted manufacturer. Built for electric vehicles, power tools, and electronics, our high-capacity rechargeable batteries deliver exceptional performance, long cycle life, and unmatched safety. OEM & ODM customization available.

Wholesale 26650 3.7V 5000mAh Lithium Ion Rechargeable Batteries Manufacturer Supplier

August 11, 2025

Experience long-lasting power with our premium 26650 3.7V 5000mAh lithium-ion rechargeable batteries. Perfect for EVs, power tools, and solar storage systems. OEM & ODM customization available, bulk pricing, and fast delivery worldwide.

18650 7S7P 24V 14Ah Lithium Ion Electric Scooter Battery Pack Factory Manufacturer

August 11, 2025

Buy high-quality 24V 14Ah lithium-ion scooter battery packs directly from the factory. Featuring A-grade 18650 cells, 7S7P configuration, long cycle life, and OEM/ODM customization. Fast delivery, CE/MSDS/UN38.3 certified, and backed by a 3-year warranty.

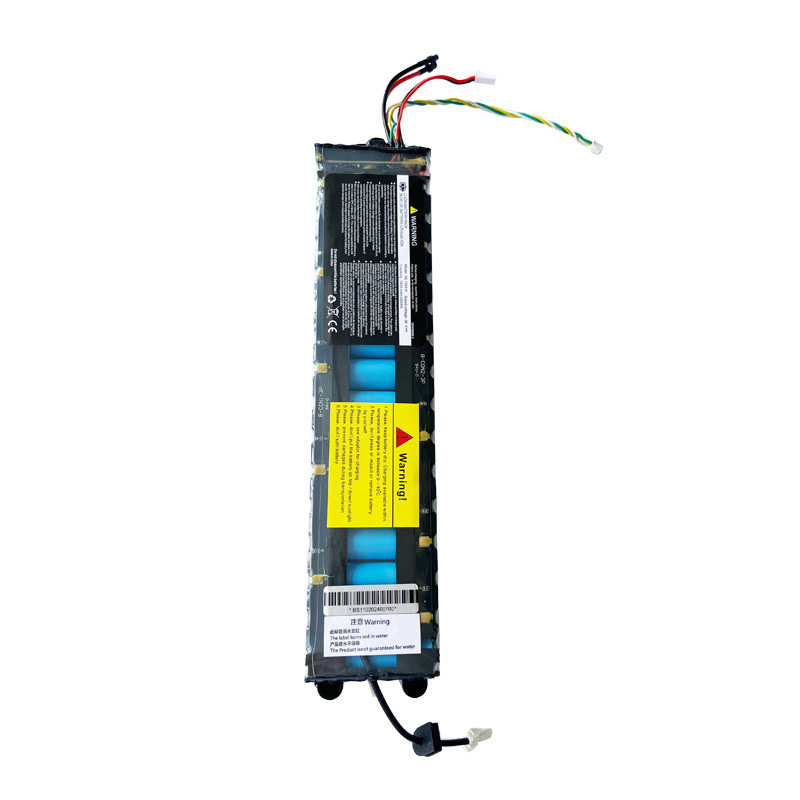

7800 mAh 36 Volt Lithium Ion Scooter Battery Factory Supplier
