Why You Keep Encountering 18650 3S2P
If you often deal with handheld devices, testing instruments, or even some small home energy storage units, you’ve probably encountered a mysterious number countless times—18650 3S2P.It’s neither a device model nor a standardized product; it’s a battery configuration.

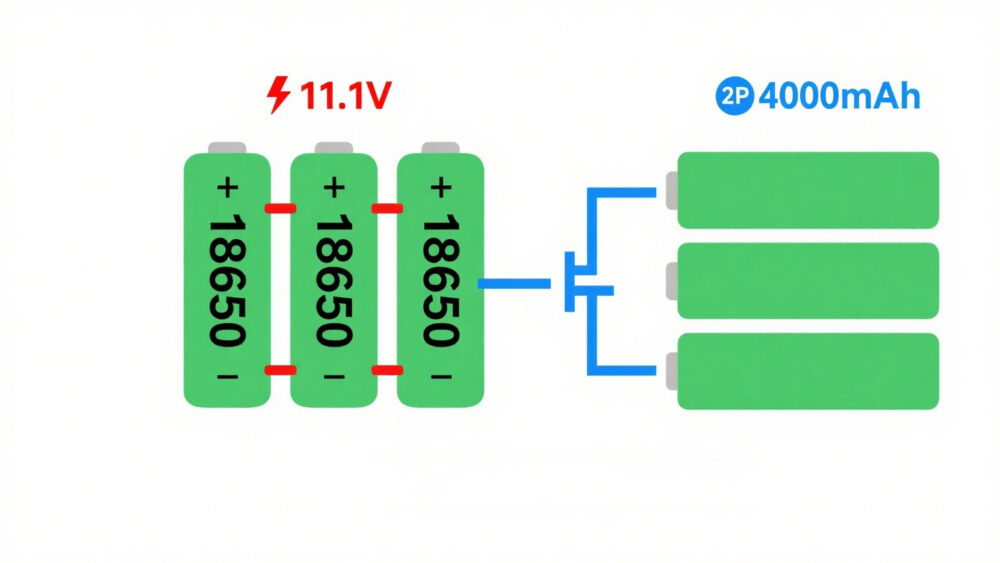

3S2P is simple: three cells are connected in series, then two such series are connected in parallel.Series connection increases voltage (typically to 11.1V, fully charged up to 12.6V);Parallel connection increases capacity (commonly between 4000–7000mAh).
This configuration is like a well-coordinated band: the series connection ensures sufficient “volume” (voltage), while the parallel connection ensures you can “listen” (use) longer.
Therefore, it’s widely used in portable detectors, medical instruments, Bluetooth speakers, POS machines, power tools, electric scooters, and emergency energy storage.
The Logic Behind the Specs
Many people instinctively look only at capacity, but the logic behind the specs determines your device experience.
Voltage: Rated at 11.1V, actual operating range is 12.6V (full charge) to 9V (empty). So don’t be surprised if your device shuts off at 30% remaining—this is due to the protection circuit cutting off early.
Capacity: Commonly between 4000mAh and 7000mAh. Higher numbers last longer, but size and weight also increase.
Internal Resistance: Usually 100–200mΩ. Lower values mean smoother discharge, making the device less likely to drop voltage under high current.
Cycle Life: Typically 500–800 cycles. If you charge and discharge daily, consider degradation after 2–3 years.
Operating Temperature: −20℃ to 60℃ covers most use cases, though performance drops noticeably in subzero winters.
Differences Between Configurations
The commonly available 18650 3S2P packs mainly differ in several dimensions:
Capacity Options
4000mAh: Lightweight, suitable for compact handheld devices.
5200mAh: Balanced, commonly found in consumer electronics or small energy storage.
6000–7000mAh: Long-lasting, ideal for power-hungry detectors, electric scooters, and UPS backup.
Cycle Life
Some batteries retain 80% capacity after 500 cycles, while others degrade noticeably after 300 cycles—this is due to material quality and manufacturing.
Certification & Safety
For medical or internationally shipped devices, certifications matter more than capacity. CE, RoHS, UN38.3, IEC62133 act as “clearance permits.” Without them, your device may not pass customs.
Customization
Connector type, PCB, and case dimensions determine whether a battery truly “fits” your device. Correct capacity alone is not enough.
Real Differences Across Use Cases
Handheld Detectors: Require lightweight batteries with decent runtime; usually 4000–6000mAh.
Medical Devices: Safety comes first; certifications are mandatory, even at the cost of capacity.
Industrial Tools: Focus on low internal resistance and long cycle life for stable high-power output.
Consumer Electronics: Bluetooth speakers or POS machines need customizable size; capacity ~5000mAh.
Transport Devices: Scooters or e-bikes require high capacity, often 7000mAh or more.
Energy Storage/UPS: Focus on energy density and long-term stability; lightweight is less critical.
How to Choose the Right 18650 3S2P Battery Pack
Choosing 18650 3S2P battery is like finding a reliable companion. First, clarify what matters most to you:
If you want it to last without failing midway, pick durable batteries with high cycle life and stable performance, like a friend who stands the test of time.
If you want longer runtime without frequent charging, high-capacity batteries (6000mAh+) are ideal.
If your device is for international shipping or medical use, certifications are essential for safety and compliance.
Some devices have strict size and connector requirements, so consider customized batteries that match your wiring and casing—like a companion who perfectly understands your habits.
Conclusion
18650 battery packs may sound like just a set of numbers, but they represent device stability, user experience, and safety.Next time you pick up a handheld detector, a POS machine, or an electric scooter, remember the quietly working battery inside—it might be the true “unsung hero” that keeps your device running smoothly.
