52V Ebike Battery Guide:Selection,Upgrades and Tips

Introduction

I’ve been riding e-bikes for years, starting with 36V systems, then 48V, and now seeing more setups supporting 52V batteries. A 52V ebike battery is tempting: slightly higher voltage means potentially more speed, better hill climbing, and longer range. But “higher voltage” also comes with risks and compatibility concerns. I’ve summarized key points from top articles and added my own practical experience, so you can see if 52V is worth upgrading to.

What Is 52V Ebike Battery?

Voltage directly affects motor output, hill-climbing power, acceleration, and efficiency under load, wind resistance, or slopes.

• A 52V battery can output higher voltage than 48V (~58–59V when fully charged).
• Higher voltage at the same current gives more power (P = V × I), so hills feel easier.
• Be careful: your controller and motor must support the higher voltage, otherwise overheating or damage may occur.

Articles often compare 24V / 36V / 48V / 52V, showing that 52V has an advantage in speed and load handling.

Advantages and Potential Drawbacks (Experience + Sources)

Advantages

1. Better Hill Climbing & Acceleration
   Installing a 52V battery on a system previously running 48V shows noticeably faster throttle response and smoother uphill rides.
2. Possible Range Increase
   If you ride gently (moderate assist, steady speed, minimal hills), 52V batteries can slightly extend range compared to old 48V batteries.
3. System Efficiency
   Some controllers work more efficiently at higher voltage—less current needed for the same power, reducing heat in wires during long rides or climbs.

Drawbacks / Cautions

1. Compatibility
   • Ensure your controller and motor can handle the full charge voltage (~58–60V).
   • Check battery dimensions and mounting space—52V packs can be bigger and heavier.

1. Heat & Battery Life
   High voltage + high current (climbs, full throttle, heavy load) increases heat. Poor heat dissipation can shorten battery life.
2. BMS Protection
   A good 52V battery should have reliable overvoltage, overcurrent, and temperature protection. Some faults occur when BMS enters protective “sleep mode.”
3. Charger & Charging Time
   Use the correct voltage/current charger. Incompatible chargers may undercharge or trigger protection early.

52V Battery Capacity Comparison

Battery Type	Nominal Voltage (V)	Capacity (Ah)	Energy (Wh)	Approx. Dimensions (mm)	Weight (kg)	Typical Use
52V 10Ah	52V	10Ah	~520Wh	365×90×110	~3.5	Light commuting, short urban trips
52V 15Ah	52V	15Ah	~780Wh	390×110×110	~4.5	Commute + suburban rides, 40–60km range
52V 20Ah	52V	20Ah	~1040Wh	420×120×120	~5.5	Long-distance, cargo delivery, hills
52V 25Ah	52V	25Ah	~1300Wh	450×130×130	~6.5	High range, mountainous/long climbs
52V 30Ah	52V	30Ah	~1560Wh	480×140×140	~7.5	Heavy-duty riding, long trips

Selection Tips:

• 10Ah/15Ah: Light, city-focused, limited range.
• 20Ah: Balanced; I’ve personally ridden 50–70 km in mixed terrain without issues.
• 25Ah/30Ah: Heavy, needs careful mounting; good for long trips or heavy loads.

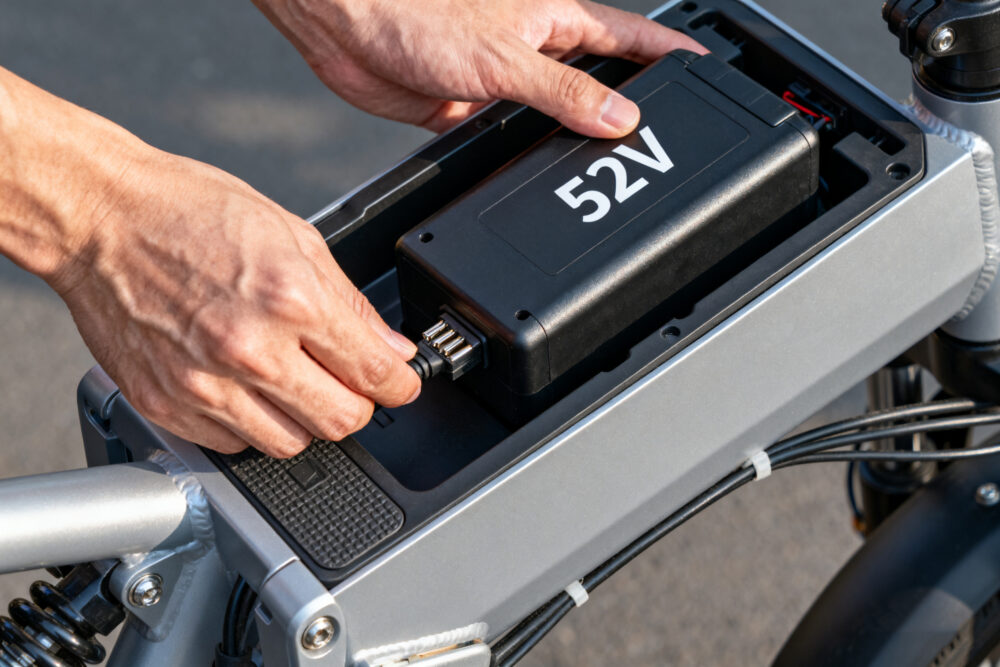

Upgrade / Selection Advice + Practical Tips

1. Check controller & motor support
   Ensure your system can handle 52V full-charge voltage (~58–60V).
2. Choose the right capacity
   Higher Ah = longer range. Avoid batteries with insufficient capacity, or you’ll charge constantly.
3. Secure wiring & connections
   Loose connectors can cause sudden power cuts on climbs. Use thick wires, sealed connectors.
4. Charging habits
   • Avoid fully discharging before charging.
   • Do not charge/store in extreme hot/cold conditions.
   • Store at ~30–60% charge if not riding for long periods.
5. Monitor battery health

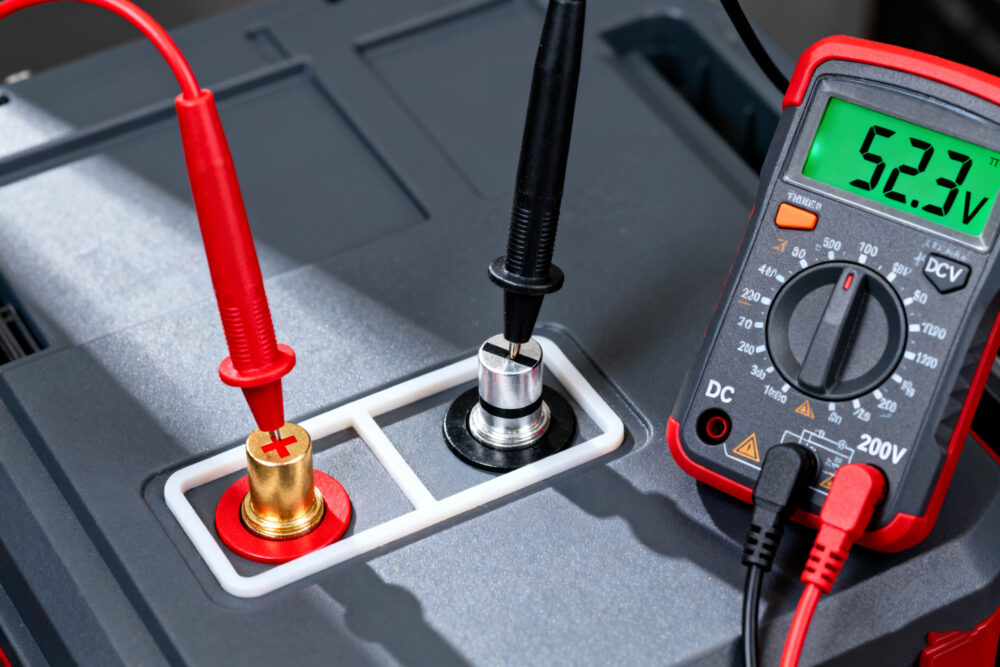

   Occasionally check voltage per cell or balance, watch for swelling or abnormal heat.

My Minor Issues / Lessons Learned

• Full-power riding on a new 52V battery consumed more than expected; range gain wasn’t dramatic at first.
• Using a 52V battery with an older 48V controller caused overheating; throttle power dropped to protect components. Adding airflow helps.
• Long idle storage led to minor self-discharge; battery showed full but effective mileage decreased.

Summary

52V ebike batteries are great if you want extra hill power, faster throttle response, or occasional long rides/heavy loads. But for flat-city commuting or limited budget, stick with existing voltage unless your system supports it safely.

Recommended approach:

1. Confirm system voltage tolerance.
2. Use batteries with appropriate capacity & BMS protection.
3. Start gently—don’t immediately ride at full throttle.
4. Regularly check voltage, cell balance, and heat.
