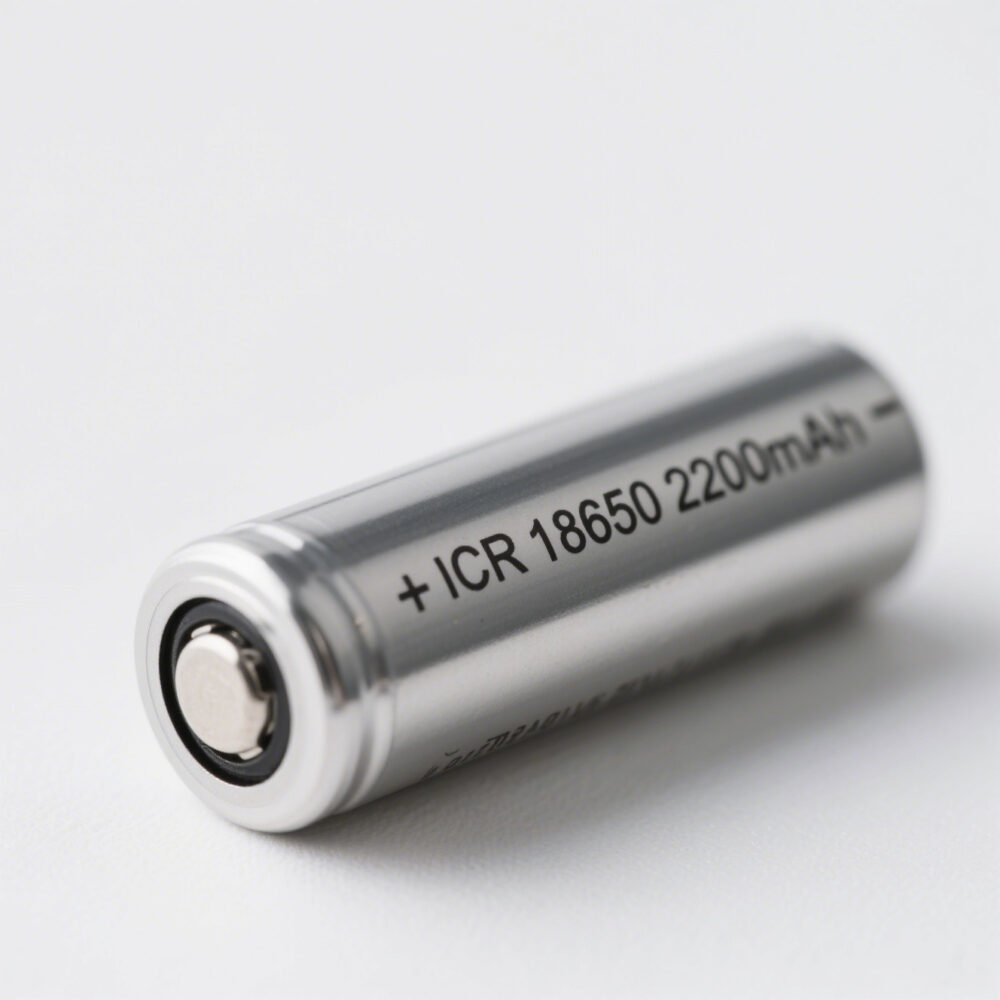

Introduction to the ICR 18650 2200mAh 3.7V Lithium Battery
The ICR 18650 2200mAh 3.7V lithium battery is a standard cylindrical lithium-ion cell widely used in the field of consumer electronics. “18650” refers to its dimensions—18mm in diameter and 65mm in length. “ICR” indicates that it uses lithium cobalt oxide (LiCoO₂) as the cathode material, known for high energy density and stable performance.
With a nominal voltage of 3.7V and a rated capacity of 2200mAh, this battery is suitable for low to medium power devices and is one of the most commonly used lithium-ion battery types on the market.
Performance Parameters: Capacity, Voltage, and Discharge
The ICR 18650 battery has a capacity of 2200mAh, which means it can continuously supply power for about 2.2 hours under a 1A load. Its typical charge cut-off voltage is 4.2V, and the discharge cut-off is 3.0V, making it compatible with most lithium battery management systems.
It typically supports a continuous discharge rate of 0.5C to 1C. Some versions can support intermittent discharges at 2C to 4C, but it is not suitable for high-rate continuous discharge applications. Depending on the usage, it may come as a protected cell or a flat top bare cell, the latter being more suitable for DIY or battery pack assembly.
Wide Application Range: From Flashlights to Fans
Thanks to its high energy density and compact size, the ICR 18650 2200mAh 3.7V lithium battery is widely used in:
- LED flashlights and headlamps
- Portable fans and electric mosquito swatters
- Bluetooth speakers and remote control toys
- Emergency lights and power banks
- DIY electronics and modules
⚠️ Note: Due to its relatively low discharge rate, ICR batteries are not recommended for use in electric tools, e-scooters, or e-bikes that require high peak current.
Comparison: ICR vs. IMR/INR Battery Types
18650 lithium batteries can be classified by cathode material into ICR, INR, IMR, etc.
- ICR (LiCoO₂) batteries offer high capacity and energy density, suitable for long-duration low-power usage.
- IMR (LiMn₂O₄) and INR (LiNiMnCoO₂) batteries provide higher discharge rates, suitable for high-power applications like e-bikes or power tools.
They are also categorized by:
- Protected vs. Unprotected
- Button top vs. Flat top
Choosing the right battery depends on your device’s compatibility and safety requirements.
How to Choose a Reliable ICR 18650 Battery?
Many low-cost ICR batteries in the market have exaggerated specs or are made from recycled cells. Here are some practical buying tips:
- Verify actual capacity — ensure it’s a real 2200mAh cell. Be cautious of ICR cells labeled 4000mAh+.
- Prefer protected cells — built-in protection circuits help prevent overcharge, overdischarge, and short circuits.
- Check consistency — ensure all cells in a pack are from the same batch and brand.
- Avoid recycled cells — labels like “Recycled” or “Repacked” usually mean the cell is reused or salvaged.
Safety Guidelines for Use and Storage
Although ICR 18650 batteries are relatively stable, improper usage can still pose safety risks. Keep in mind the following:
- Use a dedicated lithium-ion battery charger to avoid overcharging or deep discharging.
- Stop using the battery if swollen, damaged, or leaking.
- Store in a dry, cool place, away from direct sunlight or high temperatures.
- Do not crush, short-circuit, disassemble, or incinerate the battery.
Why Choose the ICR 18650 2200mAh 3.7V Battery?
The ICR 18650 2200mAh 3.7V battery is a high-value, reliable lithium-ion battery widely used in flashlights, fans, emergency lights, and other portable electronics. With stable output, decent capacity, and good compatibility, it meets the needs of most medium-to-low-power devices.
Buying from trusted sources and following proper usage and storage practices will maximize performance and battery lifespan.
