Description
3.2 v 6000mah lifepo4 prismatic battery custom factory
3.2 v 6000mah lifepo4 Wholesale Distributor
model: 3.2V lifepo4 battery-6000mAh
Technical parameters of polymer lithium battery pack: (design according to customer requirements-voltage/capacity/size/circuit)
| model: | Apusenx-3.2V lifepo4 battery-6000mAh |
|---|---|
| Single battery model: | 32700 |
| Single battery voltage: | 3.2V |
| Single battery capacity: | 6000mAh |
| Battery pack power: | 19.2Wh |
| Battery pack size: | 32*70mm |
| Charge and discharge times: | >2000 times |
Maximum discharge current: >6000mA (the current can enlarge or reduce according to customer requirements)
Instantaneous discharge current: >12A (the current can enlarge or reduce according to customer requirements)
Maximum charging current: >0.2-0.5C (the current can enlarge or reduce according to customer requirements)
Protective function
Main chip: (Different schemes may choose different ICs)
Battery overcharge function: Add a charger between P+ and P- to charge the battery. When the voltage is charged to 4.2±0.05V (can be designed according to requirements), Then the protection circuit will operate and the charging path will be turned off to realize overcharge protection.
Battery over-discharge protection function: Connect a load between P+ and P- to discharge the battery. When the battery voltage drops to 2.5±0.1V (can be design according to requirements), the protection circuit will act and turn off the discharge path to realize over-discharge protection.
Short-circuit protection function: When P+ and P- are short-circuited, the protection circuit will act quickly within 5-50uS to cut off the path and realize short-circuit protection
Over-current protection function: When the B-terminal and P-terminal voltage reaches (0.15±0.02V), the protection circuit will act quickly within 5-26ms, cut off the path, and realize overcurrent protection
temperature performance
Discharge temperature range: -10°C—60°C
Charging temperature range: 0°C—40°C
Storage temperature: 1 year: -20℃—25℃
3 months: -20℃—45℃
1 month: -20℃—60℃
vibration requirements
Frequency: 10-50-10HZ
Amplitude: 1.5mm
Time: 45min (without load)
Comply with relevant national standards and requirements for batteries. Additionally, all finished 3.2V LiFePO4 battery have been calibrate and tested before leaving the factory, so they can be use directly. Furthermore, different products can be designed according to different data, parameters, and requirements to meet customer requirements.

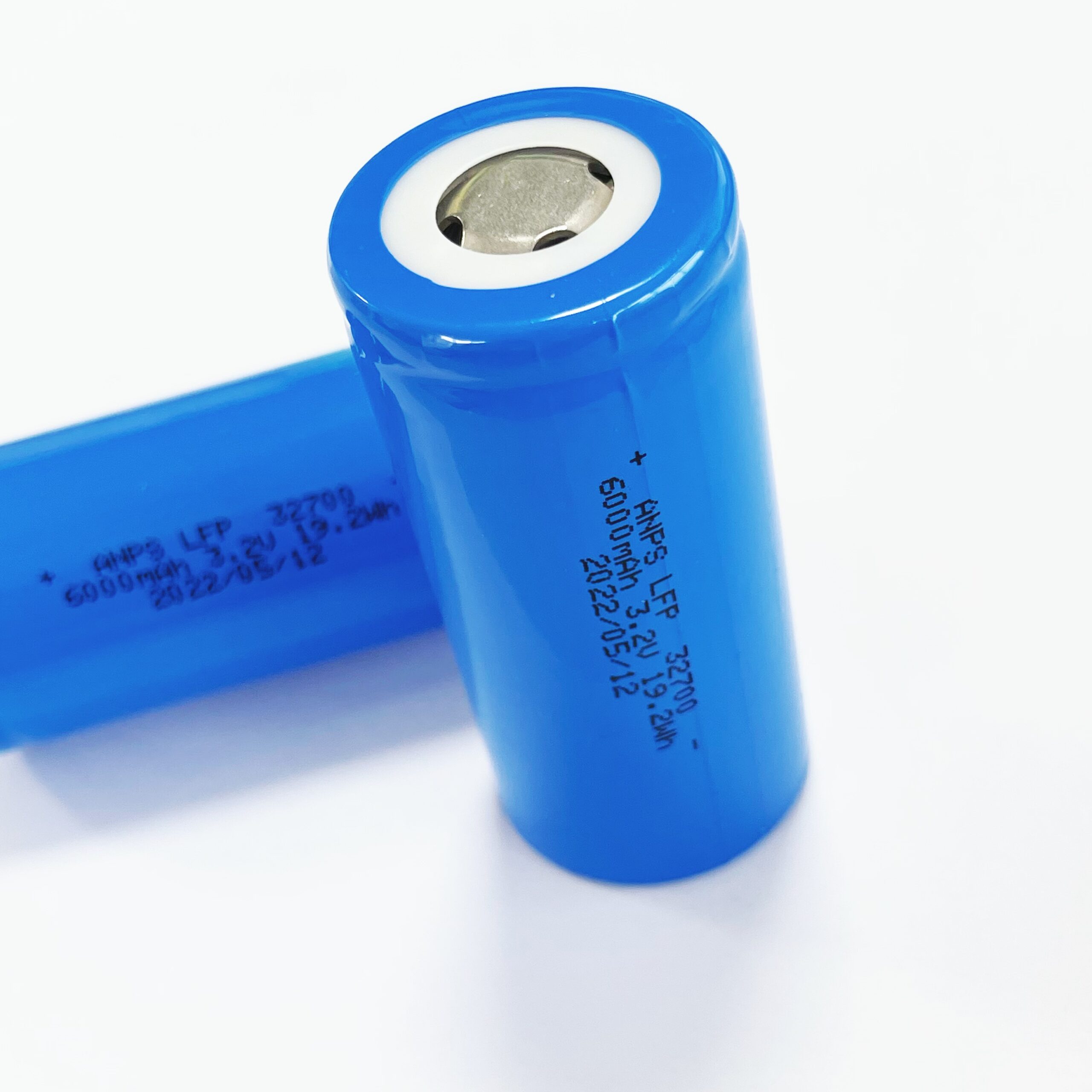

The Lithium Iron Phosphate 32700 6000mAh battery offers powerful capacity and long-lasting cycles. Additionally, it is safe, energy-efficient, and durable.
With accurate large capacity labeling and no false claims, our high-capacity batteries are available for direct sales from the manufacturer. Furthermore, we offer customization in various specifications to meet your specific needs.
After 2000 cycles of complete charge and discharge at 0.5°C current in a 25±2°C environment, followed by discharge at 0.5°C current to 2.0V termination voltage, the battery’s discharge capacity was measured. The result show >80% of nominal capacity, indicating long-lasting lifespan, superior performance, and economic and environmental benefits.
Blast-proof valve safety design ensures peace of mind for your well-being, offering secure protection.
Widely compatible and offering stability that surpasses that of ternary batteries, our LiFePO4 batteries ensure broader and more reliable usage.
