How Many 18650 Batteries Do I Need for 100Ah?

If you’ve ever thought about building a high-capacity battery pack, the question “how many 18650 batteries are needed for 100Ah?” inevitably comes up. It sounds simple—just divide 100Ah by the capacity of a single cell—but anyone who has tried this in practice knows it’s more complex. Voltage, series and parallel connections, chemistry differences, and safety considerations all play a role.

Understanding 18650 Batteries and Their Capacity

The 18650 lithium-ion battery is a standard cell, about 18mm in diameter and 65mm long, usually rated at 3.6V–3.7V, with capacities ranging from 1500mAh to 3500mAh.

For instance, a 2500mAh cell can supply 2.5A for an hour, or 1.25A for two hours.

That’s the nominal figure. Real-world performance depends on temperature, age, and discharge rate, so calculating a 100Ah pack is never just a straight division.

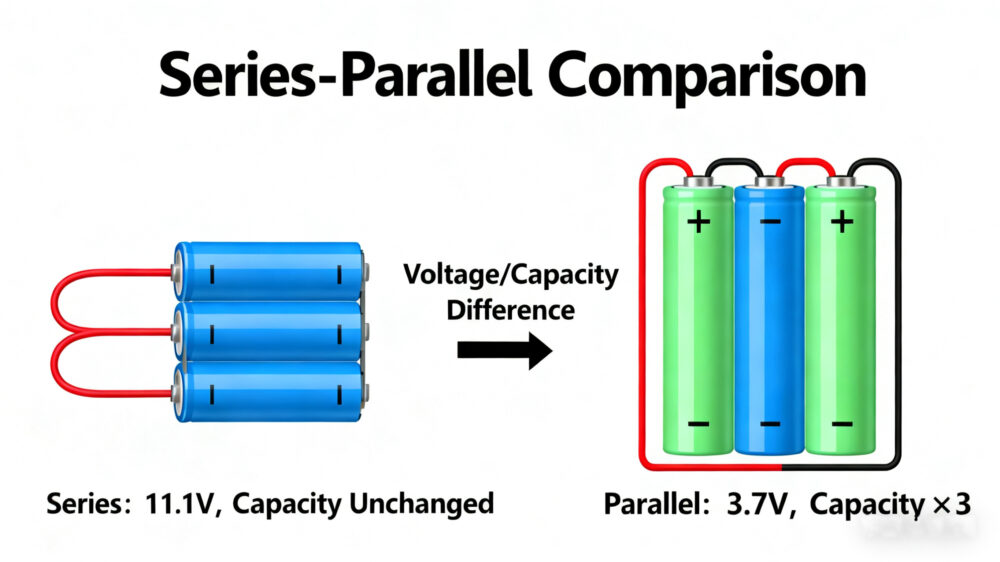

Series vs Parallel Connections

This is where the design gets interesting. Series connections boost voltage, while parallel connections increase capacity:

• Series (S): Connect cells end-to-end; voltage adds up. For example, three 3.7V cells in series give 11.1V nominal.
• Parallel (P): Connect cells side-by-side; capacity adds up. Ten 2.5Ah cells in parallel = 25Ah at 3.7V.

The total number of cells = Series × Parallel.

Notice the subtlety: achieving 100Ah isn’t just about capacity. Voltage requirements determine series count, which then shapes total hardware needs.

Step-by-Step Example: 12V / 100Ah Pack

Let’s assume you want 12V / 100Ah battery pack using 3.7V, 2500mAh cells:

1. Series count (S): 12 ÷ 3.7 ≈ 3 → 3 cells in series (3S).
2. Parallel count (P): 100 ÷ 2.5 = 40 → 40 cells in parallel (40P).
3. Total cells: 3 × 40 = 120 cells.

Here’s the thought process in action: first voltage, then capacity, finally total cells. This layered thinking is what separates theoretical calculation from practical design.

How Different Cells Change the Calculation

Even small changes in capacity or chemistry can shift total cell count significantly. Relying solely on Ah numbers can be misleading.

Practical Considerations

• Cell Consistency: Cells should have similar capacity, chemistry, and internal resistance. A single weak cell can drag down the whole pack.
• Battery Management System (BMS): Vital for monitoring voltage, temperature, and charge/discharge balance. Protects against overcharging and overdischarging.
• Safety: Large parallel packs require proper fuses, wiring, and thermal management.
• Capacity Margin: Aging, heat, and actual load may reduce usable Ah, so slightly exceeding 100Ah in design is wise.

Key Takeaways

• A 12V, 100Ah pack using 2500mAh cells generally requires about 120 cells.
• Higher-capacity cells reduce total cell count; lower-capacity or different chemistry cells may more than double it.
• The process is layered: determine voltage first, capacity second, safety and real-world adjustments third.

This approach ensures that your battery pack not only meets the 100Ah target but also performs reliably under real conditions.
