10S3P Battery Performance Advantages, Applications, and Customized Solution

In the rapidly growing energy storage industry, the unique structural design and performance advantages of the 10S3P battery pack have made it the core power source choice for many high-power devices. The term “10S3P” refers to a battery pack composed of 10 cells connected in series (to increase voltage) and 3 cells connected in parallel (to increase capacity), resulting in an energy storage unit that combines high voltage with large capacity. This article will provide an in-depth analysis of the advantages, applications, characteristics, and assembly considerations of the 10S3P battery pack, exploring how Apsenx customized 10S3P battery solutions meet the demands of various scenarios.

Core Advantages of the 10S3P Battery: The Perfect Balance of High Voltage and Large Capacity

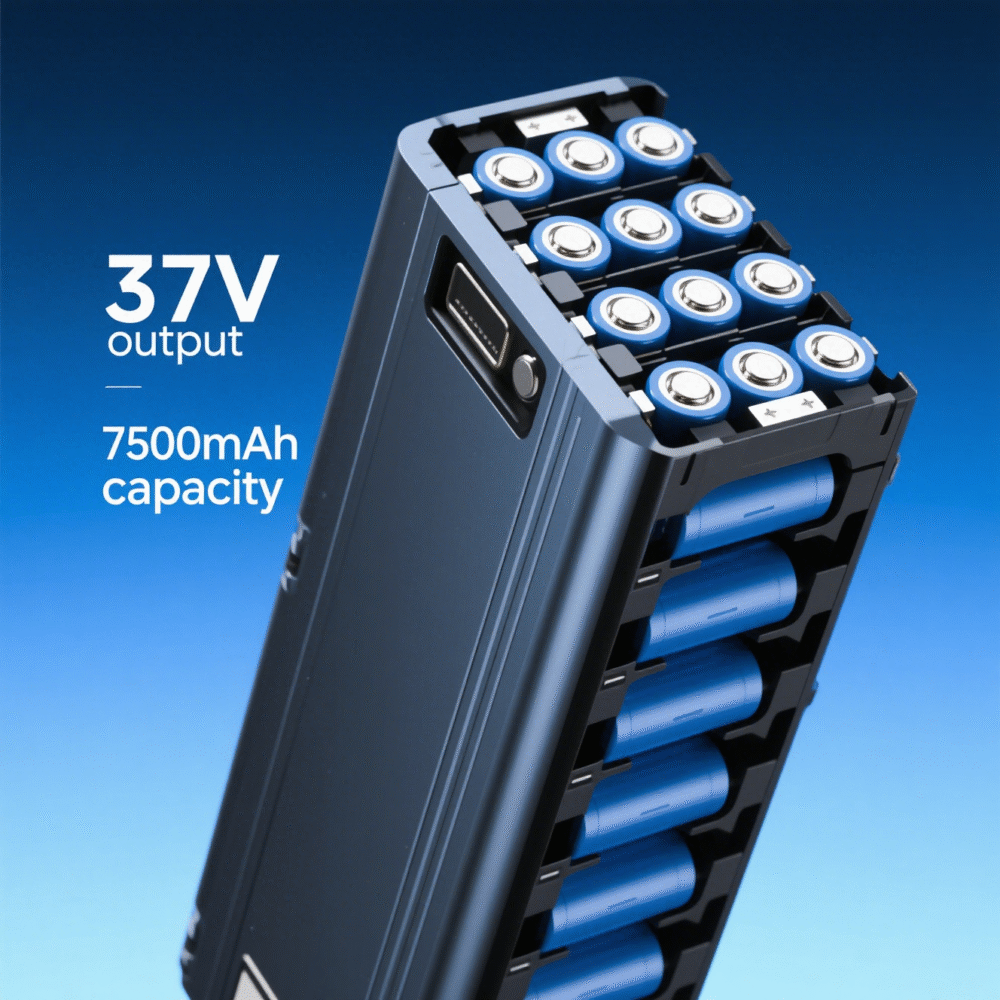

The most notable advantage of the 10S3P battery pack lies in its combination of output voltage and energy density. A single lithium-ion cell has a nominal voltage of 3.7V; when 10 cells are connected in series (10S), the voltage reaches 37V, which closely matches the standard voltage of common power tools (such as a 36V drill). Meanwhile, the 3P parallel configuration triples the capacity of a single cell. Assuming each cell has a capacity of 2500mAh, the total capacity of the 10S3P pack reaches 7500mAh, delivering an energy output of 277.5Wh—nearly 30 times that of a single cell. This design is especially suitable for devices requiring sustained high-power output, such as electric scooters and outdoor power supplies.

Compared to other battery configurations, the 10S3P achieves an excellent balance between safety and efficiency. For example, a common 6S4P structure may have a similar capacity, but its 6S series connection results in a lower voltage of 22.2V. To drive high-power motors, this lower voltage requires higher current, which increases heat generation and power loss in the wiring. By increasing the voltage to reduce current, the 10S3P design—combined with a low internal resistance (such as Apsenx battery packs with internal resistance ≤30mΩ)—can improve energy transmission efficiency by over 12%, effectively extending device runtime.

Versatile Application Scenarios: Universal Adaptation from Industrial to Consumer Electronics

Electric Transportation

In the electric bicycle and scooter markets, the 10S3P battery pack, with its 37V voltage and large capacity, can reliably power motors of 480W and above. Electric scooters equipped with 10S3P battery packs can reach top speeds of up to 35 km/h and achieve a range exceeding 60 kilometers. Apsenx’s custom battery packs for this sector feature IP65 waterproof ratings and shock-resistant designs to withstand rough terrain and harsh weather conditions. Additionally, built-in overcurrent protection chips prevent current overload during rapid acceleration.

Energy Storage and Off-Grid Power Supply

Outdoor power stations and solar energy storage systems demand high battery capacity and compatibility. The 10S3P battery pack can directly supply 12V/24V devices or, through an inverter, convert power to 220V AC. Apsenx’s 10S3P battery solutions for energy storage support bidirectional inverter functionality, achieving a charge/discharge efficiency of 95%. Equipped with an intelligent Battery Management System (BMS), these packs seamlessly integrate with photovoltaic panels and wind turbines, ensuring continuous power supply in off-grid environments.

Professional Equipment and Drones

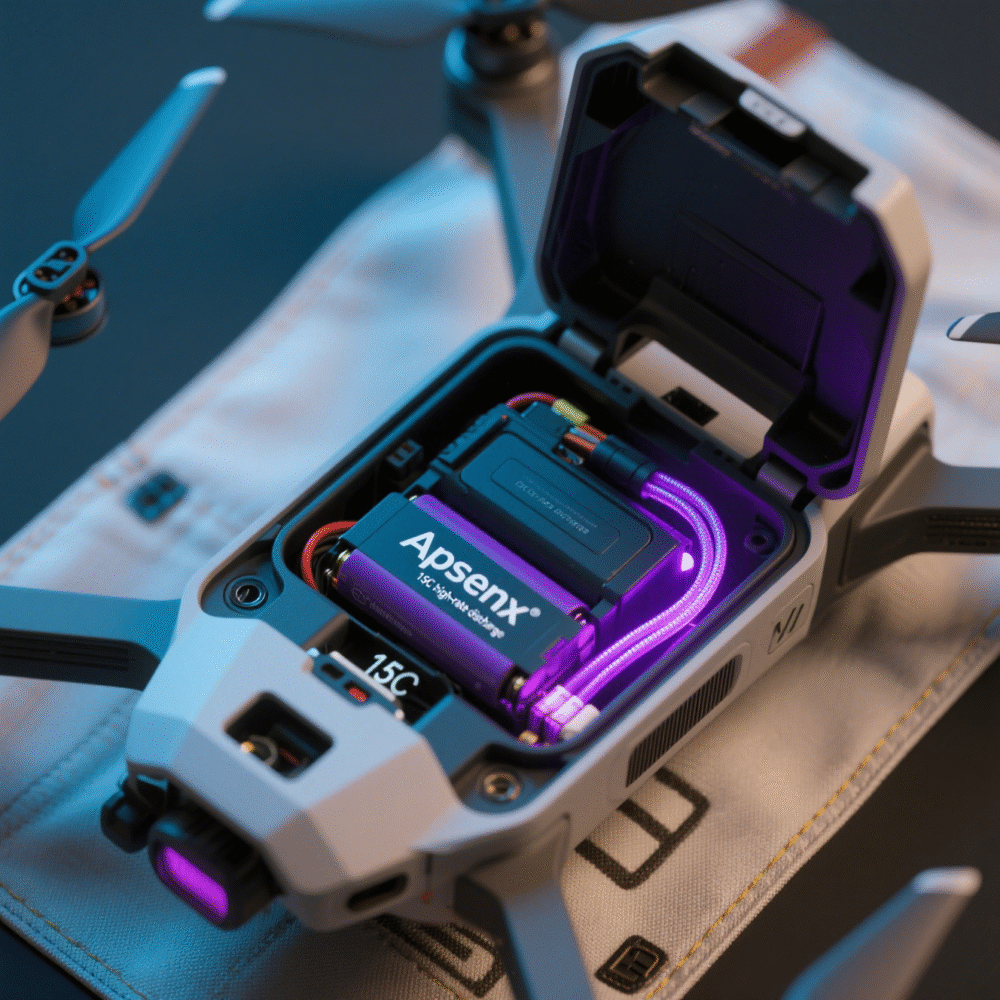

Film and aerial surveying drones, as well as surveying instruments, require high discharge rates. Apsenx’s custom 10S3P battery packs utilize high-discharge-rate cells (15C continuous discharge), delivering instantaneous currents up to 112.5A to meet the power demands during drone takeoff and rapid stops. Test data shows that surveying drones using these battery packs enjoy a 25% longer flight time compared to standard batteries, significantly improving operational efficiency.

Core Features of the 10S3P Battery Pack: Safety, Efficiency, and Long Lifespan

Intelligent Battery Management System (BMS)

The BMS serves as the “brain” of the 10S3P battery pack, responsible for overcharge, over-discharge, overcurrent protection, and cell balancing. Apsenx’s BMS monitors the voltage, temperature, and health status of all 30 cells in real-time. When any cell’s voltage drops below 2.8V, the output is automatically cut off within 0.1 seconds to prevent battery damage. With a balancing current of up to 500mA—three times higher than traditional BMS—the system ensures consistent lifespan across all cells.

High and Low Temperature Performance

The performance of the 10S3P battery pack in extreme environments directly impacts device operation. Apsenx enhances its battery packs with special electrolytes and insulation materials to maintain over 80% capacity at -20°C and stable operation at 60°C. After 500 cycles of high-temperature testing, the battery pack’s capacity degradation is only 8%, outperforming the industry average.

Ultra-Long Cycle Life

Cycle life is a key metric for battery cost-effectiveness. The Apsenx 10S3P battery pack uses NCM811 ternary lithium materials combined with laser welding technology to achieve a cycle life exceeding 1200 cycles (capacity retention ≥ 80%). Assuming one full charge-discharge cycle per day, the battery pack can reliably operate for over three years, significantly reducing replacement costs for users.

Key Assembly Considerations for 10S3P Battery Packs: From Cell Selection to System Integration

Cell Consistency Screening

Variations in cell parameters accelerate battery pack aging. Before assembly, Apsenx uses high-precision sorting equipment to grade cells based on voltage, internal resistance, and capacity, ensuring that the voltage difference between cells in the same group is ≤5mV and internal resistance difference is ≤2mΩ. This strict screening improves overall battery pack lifespan by 30%, preventing capacity degradation caused by the “weakest link” effect.

Optimized Series-Parallel Structure

In a 10S3P battery pack, the series connections must withstand high voltage, while the parallel connections need to balance current evenly. Apsenx employs a “dual-loop parallel” design to distribute current more uniformly and uses nickel-plated copper busbars to reduce contact resistance. Experimental data shows this design reduces the overall internal resistance of the battery pack by 18%, minimizing heat loss.

Customized BMS Development

Different applications require tailored BMS functionalities. Apsenx offers customized BMS development services, such as adding torque overload protection for power tools or integrating remote monitoring modules for energy storage systems. Customers can monitor battery status in real time via a cloud platform, receive early warnings of potential faults, and achieve intelligent operation and maintenance.

Five Key Reasons to Choose Apsenx Custom 10S3P Battery Packs

• Precise Customization Services: Tailoring cell models, BMS functionalities, and enclosure sizes according to customer requirements, providing a one-stop solution from design to mass production.
• Quality Control: Each batch undergoes 12 rigorous testing procedures, including nail penetration, compression, and salt spray tests, ensuring reliability under extreme conditions.
• Full Lifecycle Support: Offering an extended 3-year warranty backed by a professional after-sales team, with response times within 48 hours.
• Environmental Compliance: Products comply with EU RoHS, UN38.3 certifications, use recyclable materials, and maintain transparent, traceable carbon footprints.
• Technological Innovation: Continuous R&D investment enables battery packs with an energy density of 240Wh/kg—20% higher than traditional products—leading the industry.

The 10S3P battery pack, with its unique structural design and outstanding performance, is reshaping the power supply landscape for high-power devices. Leveraging deep technical expertise and customized service capabilities, Apsenx delivers safe, efficient, and long-lasting battery solutions. Whether for electric transportation, energy storage systems, or professional equipment, choosing Apsenx custom 10S3P battery packs injects durable and reliable power into your devices.

If you have special customization needs for 18650 battery packs, please contact Apsenx. We are ready to craft exclusive energy solutions tailored for you.
