If you’ve ever searched for lithium batteries for flashlights, laptops, power tools, or battery packs, you’ve probably come across the 18650 battery. It’s one of the most widely used rechargeable lithium-ion battery formats in the world.

But many people still wonder: what exactly are the dimensions of an 18650 battery?

The answer sounds simple at first, but once you start comparing real batteries from different manufacturers, you quickly notice that not every 18650 cell is exactly the same size.

Here’s what the dimensions actually mean, why some 18650 batteries are slightly longer than others, and what you should know before buying or building a battery pack.

---

What Does “18650” Mean?

The name itself already tells you the basic size.

An 18650 battery is generally:

• 18 mm in diameter
• 65 mm in length
• Cylindrical in shape

That’s where the number comes from:

• “18” = 18 mm wide
• “65” = 65 mm long
• “0” = cylindrical battery

So when people ask about 18650 battery dimensions, the standard answer is:

Measurement	Standard Size
Diameter	18 mm
Length	65 mm

That’s the nominal size used across the lithium battery industry.

---

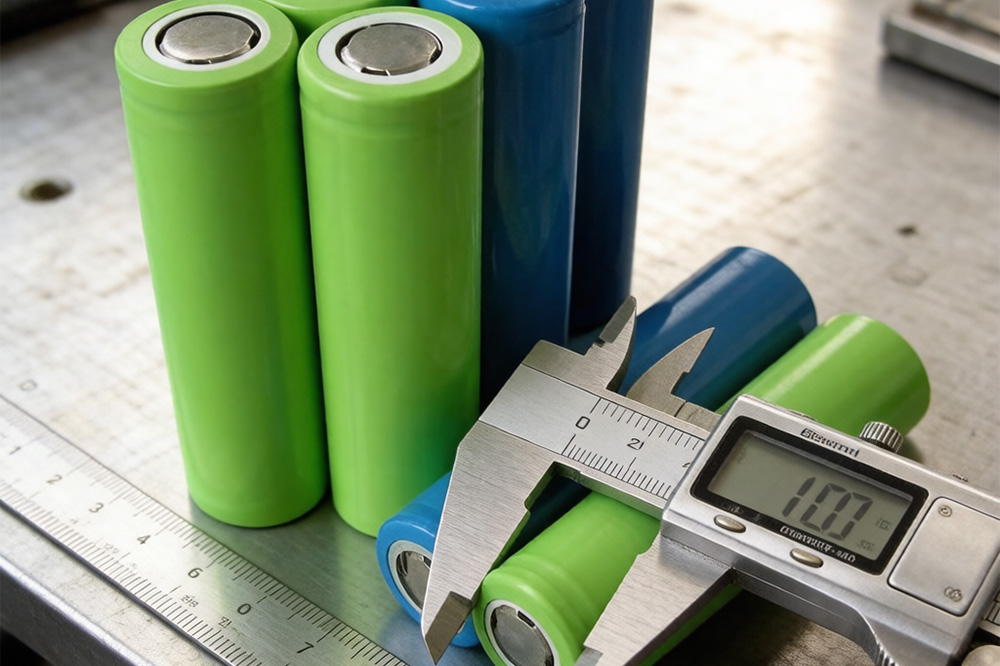

Real 18650 Batteries Are Not Always Exactly 65 mm

This is where things get interesting.

In real-world use, many 18650 batteries are slightly larger than the official dimensions.

You’ll commonly see sizes like:

• 18.2 mm × 65.2 mm
• 18.4 mm × 65.5 mm
• 18.6 mm × 67 mm

That’s because some cells include extra components such as:

• Protection circuits
• Button tops
• Additional wrapping
• Insulation layers

So while the “standard” size is 18 × 65 mm, the actual battery in your hand may be a little longer or thicker.

---

Protected vs Unprotected 18650 Batteries

One major reason for size differences is whether the battery is protected or unprotected.

Unprotected 18650 Batteries

These are usually closest to the original dimensions.

Typical size:

• Around 18 mm × 65 mm

They are commonly used in:

• Battery packs
• Power banks
• OEM devices
• DIY battery assemblies

---

Protected 18650 Batteries

Protected cells include a small protection circuit board designed to help prevent:

• Overcharging
• Over-discharging
• Short circuits

Because of that added circuitry, protected batteries are often longer.

Typical size:

• 68–70 mm long

This is why some flashlights or chargers may not fit certain 18650 batteries even though they are technically the same battery type.

Want to learn 18650 Unprotected Rechargeable Li-Ion Battery→ Read: What Is 18650 Unprotected Rechargeable Li-Ion Battery?

---

Flat Top vs Button Top Size Differences

Another thing that changes battery dimensions is the terminal design.

Flat Top

Flat top batteries have a flat positive terminal.

They are slightly shorter and are commonly used in:

• Battery packs
• Industrial applications
• Power tools

---

Button Top

Button top batteries have a raised positive contact.

They are often used in:

• Flashlights
• Consumer electronics
• Devices designed for replaceable cells

Because of the raised terminal, button top batteries are usually a bit longer.

---

How Big Is 18650 Compared to AA Batteries?

A lot of people picture 18650 battery as a slightly larger AA battery, and honestly, that comparison is not too far off.

Here’s the size difference:

Battery Type	Diameter	Length
AA Battery	About 14 mm	About 50 mm
18650 Battery	About 18 mm	About 65 mm

An 18650 battery is noticeably thicker and longer than a standard AA battery.

It also stores much more energy.

That’s one reason 18650 cells became so popular in high-drain applications.

---

Why Battery Dimensions Matter

People often assume battery size is just a minor detail, but dimensions matter a lot in actual use.

Even a difference of 1–2 mm can affect:

• Flashlight compatibility
• Charger fitment
• Battery holders
• Laptop battery packs
• Electric bike assemblies
• Portable power systems

For example, some chargers are designed only for unprotected 65 mm cells. A protected 69 mm battery may simply not fit.

That’s why checking the actual measurements before buying is always a good idea.

---

Typical Weight of an 18650 Battery

Although dimensions are fairly standardized, weight can vary quite a bit.

Most 18650 batteries weigh somewhere between:

• 40 g
• 50 g

Higher-capacity cells are usually a little heavier because they contain more active material.

---

Common Uses for 18650 Batteries

18650 batteries became popular because they offer a strong balance between:

• Size
• Energy capacity
• Rechargeability
• Output performance

Today they’re commonly found in:

• Flashlights
• Laptop battery packs
• E-bikes
• Portable fans
• Power tools
• Solar storage systems
• DIY battery packs
• Vape devices
• Emergency lighting

You can also explore different types of 18650 lithium battery options for various industrial and consumer applications.

---

Are 18650 Batteries Still Popular Today?

Yes, very much so.

Newer formats like 21700 batteries have grown quickly in recent years, especially in electric vehicles and high-capacity devices. But 18650 batteries are still extremely common because so many existing products were designed around their size.

There’s also a huge global supply chain built around the 18650 format, which keeps them widely available.

---

Choosing the Right 18650 Size

Before buying an 18650 battery, it’s worth checking:

• Maximum battery length your device supports
• Flat top or button top requirements
• Protected or unprotected compatibility
• Charger dimensions
• Battery holder tolerances

A battery labeled “18650” may not automatically fit every device designed for 18650 cells.

That’s something many first-time buyers discover the hard way.

---

Final Thoughts

The standard dimensions of an 18650 battery are approximately:

• 18 mm diameter
• 65 mm length

But in real-world applications, actual measurements often vary slightly depending on the battery design, protection circuit, and terminal style.

That small difference matters more than people expect, especially for tight battery compartments and chargers.

So before replacing or upgrading an 18650 battery, it’s always smart to check the exact dimensions rather than relying only on the battery name.
