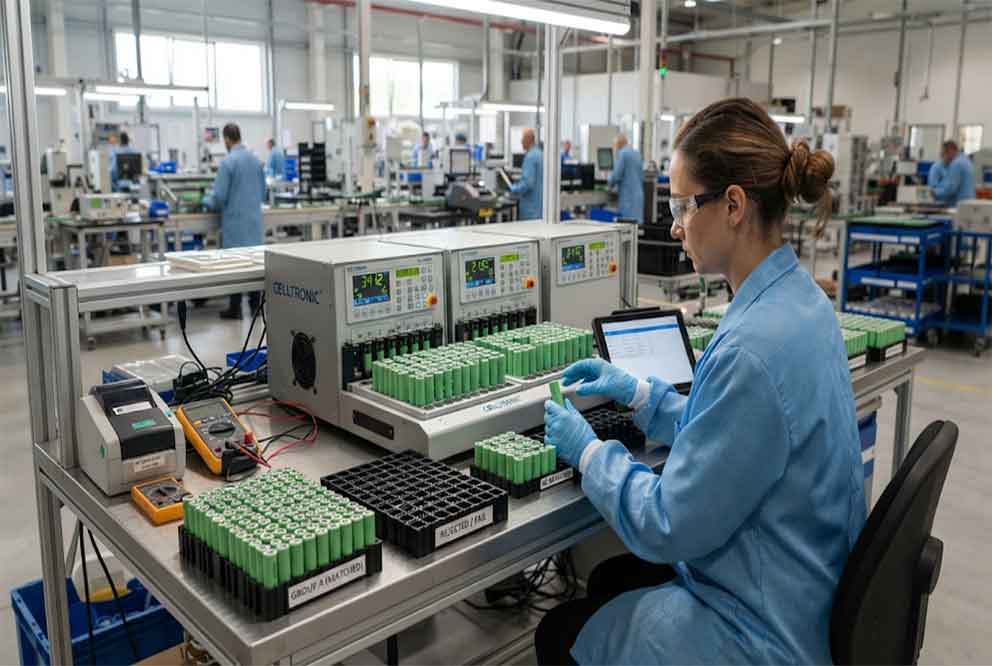

18650 Battery Cell Matching: Why Capacity and Resistance Matter

Buying the right 18650 cell is only the first step in making a battery pack.

When a pack contains many cells, those cells need to work well together. Small differences in capacity, voltage, and internal resistance can affect pack performance.

This is why 18650 battery cell matching matters in OEM battery pack production.

Cell matching means testing individual cells and grouping cells with similar characteristics. The goal is simple: create more consistent battery packs.

However, matching is not just about finding cells with the same mAh rating. Internal resistance, voltage, production batch, and other factors may also matter.

This guide explains how cell matching works and what OEM buyers should check before production.

What Is 18650 Battery Cell Matching?

18650 battery cell matching is the process of testing individual cells before battery pack assembly.

The manufacturer checks selected electrical characteristics. The cells are then sorted into suitable groups.

Common matching factors include:

• Capacity
• Internal resistance
• Voltage
• Self-discharge
• Production batch
• Cell age
• Physical condition

Not every project needs the same matching process.

A small portable device may have different requirements from a high-current industrial battery. Therefore, the matching method should follow the actual battery design.

Why Do 18650 Cells Need to Be Matched?

A battery pack contains multiple cells that work as one system.

Each cell contributes to the pack’s electrical performance. As a result, large differences between cells can affect the complete pack.

Consider four 3000mAh cells connected in parallel.

The simple capacity calculation is:

3000mAh × 4 = 12,000mAh

In real production, the four cells may not measure exactly 3000mAh.

For example:

• Cell A: 3010mAh
• Cell B: 3004mAh
• Cell C: 2998mAh
• Cell D: 2993mAh

These values are relatively close.

A manufacturer can use test results to group cells with similar performance. This helps create more consistent parallel groups.

The exact acceptable difference depends on the cell and battery design.

Capacity Matching

Capacity is one of the most common factors used in cell matching.

An 18650 cell may have a rated capacity of 3000mAh. However, the actual measured capacity can vary within the manufacturer’s specification.

The test conditions also matter.

For example, capacity testing may depend on:

• Charging method
• Charging voltage
• Discharge current
• Cutoff voltage
• Test temperature
• Rest time

For this reason, two capacity results should not be compared without checking the test conditions.

A Simple Capacity Matching Example

Suppose a manufacturer tests several cells.

The measured results are:

Cell	Capacity
A	3010mAh
B	3005mAh
C	3002mAh
D	2999mAh
E	2995mAh
F	2991mAh

The manufacturer can sort the cells according to the measured results.

Cells with similar results can then be assigned to the same production group.

This process is more reliable than taking random cells from a box.

For more information about capacity, see Standard 18650 Battery Capacity: 2000mAh, 2600mAh, 3000mAh or 3500mAh?

Why Internal Resistance Matters

Capacity is important, but it is not the whole story.

Internal resistance also affects battery performance.

A simple relationship is:

Voltage drop ≈ Current × Resistance

Resistance also produces heat:

Power loss ≈ Current² × Resistance

Therefore, resistance becomes more important as current increases.

For example, two 18650 cells may both have a capacity close to 3000mAh.

However:

• Cell A: 35mΩ
• Cell B: 75mΩ

The capacity difference is small. The resistance difference is much larger.

Under a light load, the difference may have limited practical impact.

Under a heavy load, the higher-resistance cell may show more voltage drop and generate more heat.

That is why high-current battery packs need careful resistance control.

Capacity and Resistance Should Be Checked Together

One common mistake is matching cells by capacity only.

Imagine two cells with these specifications:

Cell	Capacity	Internal Resistance
A	3000mAh	35mΩ
B	3010mAh	70mΩ

The capacity values are close.

The resistance values are not.

For a low-current application, this difference may be less important. For a high-current application, it can become much more significant.

In practice, the manufacturer should consider both parameters.

The same principle applies to other characteristics that affect the final pack.

Voltage Matching

Manufacturers may also check the open-circuit voltage of each cell.

Voltage gives useful information about the cell’s current state.

However, voltage alone does not prove that two cells are matched.

The cells should be tested under controlled conditions. Their state of charge should also be considered.

For example, two cells with different voltages may simply have different states of charge.

Therefore, voltage matching works best as part of a broader testing process.

What About Self-Discharge?

Self-discharge is another characteristic that can matter.

A cell slowly loses stored energy when it is not connected to an external load. The rate can vary between cells.

This difference may be more important for products that remain unused for long periods.

Examples include:

• Backup equipment
• Emergency devices
• Stored battery products
• Certain industrial systems

A manufacturer may monitor self-discharge when the application requires tighter control.

However, this type of testing takes more time. It should therefore be selected according to the project requirements.

Do Cells From the Same Model Match Automatically?

No.

The same model means that the cells follow the same basic specification.

It does not mean every individual cell has exactly the same performance.

Normal production variation can occur in:

• Capacity
• Internal resistance
• Voltage
• Weight
• Self-discharge
• Production batch

These differences are one reason manufacturers perform testing and sorting.

Cell matching helps control normal variation before the cells enter the battery pack.

Same Batch or Mixed Batches?

Using cells from the same production batch can simplify quality control.

It can also make production records easier to manage.

However, the same batch does not mean every cell is identical. Testing is still important.

Mixed batches can introduce additional variables.

For an OEM project, the manufacturer should record information such as:

• Cell model
• Production batch
• Test results
• Matching group
• Assembly date

This creates better production traceability.

If a customer later reports a problem, traceable records can help identify the affected production batch.

How Are 18650 Cells Tested?

The exact process depends on the cell model and project.

A typical workflow may include several stages.

1. Visual Inspection

The QC team first checks the physical condition.

They look for:

• Damaged insulation
• Dents
• Corrosion
• Terminal damage
• Abnormal marks
• Packaging problems

A damaged cell should not enter normal pack production.

2. Voltage Test

The manufacturer measures the cell voltage.

This provides an initial electrical reference.

The cells should be tested under consistent conditions.

3. Internal Resistance Test

A suitable battery tester measures the internal resistance.

The testing method should remain consistent.

Different instruments or test methods can produce different results. Therefore, buyers should ask how the supplier measures resistance before comparing numbers.

4. Capacity Test

The cell is charged and discharged under defined conditions.

The measured capacity is recorded.

This step takes longer than a simple voltage test, but it provides important information for cell matching.

5. Data Sorting

The test results are collected and sorted.

The manufacturer can then identify cells with similar characteristics.

6. Cell Grouping

Suitable cells are assigned to the same battery pack or parallel group.

7. Pack Testing

After assembly, the finished battery pack needs another round of testing.

This final check is important.

Good cells do not automatically guarantee a good battery pack.

How Does Matching Work in a Parallel Group?

Parallel connections make cell matching especially important.

Consider a 10S4P battery pack.

The configuration contains:

10 series groups × 4 parallel cells = 40 cells

Each parallel group contains four cells.

The four cells should have suitable characteristics for that group.

For example:

Group 1: A + B + C + D

Group 2: E + F + G + H

The manufacturer uses test data to create these groups.

Randomly selecting four cells may produce a wider performance difference.

Good grouping helps reduce unnecessary variation between parallel groups.

For more information, see 18650 Battery Series and Parallel: Understanding S and P Configurations.

What Happens When Cells Are Poorly Matched?

The result depends on how large the difference is.

A small difference may have little practical effect.

A larger difference can create problems such as:

• Uneven voltage behavior
• Different voltage drop
• Increased heat
• Lower usable capacity
• Earlier voltage cutoff
• Greater imbalance between groups
• Less consistent pack performance

The weakest series group can sometimes determine when the BMS stops charging or discharging the pack.

As a result, other groups may still have available energy when the pack reaches its protection limit.

This is one reason cell consistency matters.

Cell Matching and Battery Pack Capacity

Cell matching can also affect how much of the theoretical pack capacity is usable.

Suppose a battery pack has several series groups.

One group may reach its lower voltage limit earlier than the others. The BMS may then stop the discharge process.

The other groups may still have some remaining capacity.

A similar situation can happen during charging.

One group can reach its upper voltage limit before the other groups.

Therefore, consistent cells can help the pack operate more evenly.

Does the BMS Replace Cell Matching?

No.

The BMS and cell matching have different jobs.

A BMS can monitor and protect the battery pack. Depending on the design, it can also balance series groups.

However, a BMS cannot turn very different cells into identical cells.

A reliable battery system combines several elements:

Suitable cells + cell matching + correct BMS + proper assembly + final testing

Each element has a separate purpose.

This is particularly important for OEM battery pack production.

How Does the BMS See a 10S4P Pack?

In a 10S4P pack, four cells are connected in parallel within each group.

The BMS normally monitors the voltage of the series groups.

Therefore, the four parallel cells effectively work as one group from the BMS monitoring perspective.

This makes consistency inside each parallel group important.

The exact BMS design depends on the battery configuration and application.

High-Current Applications Need More Attention

Cell matching becomes more important when the battery operates at high current.

Typical examples include:

• Power tools
• Motor systems
• Industrial equipment
• Robotics
• Portable power systems
• High-output devices

At higher current, resistance-related voltage drop and heat become more noticeable.

For this reason, high-current battery packs should not rely on capacity matching alone.

The manufacturer may also need to evaluate:

• Internal resistance
• Continuous discharge current
• Peak current
• Temperature rise
• BMS current limit
• Connection resistance

For more information, see 18650 Battery Discharge Current: What Buyers Should Check.

How Tight Should Cell Matching Be?

There is no single matching tolerance for every 18650 battery pack.

The correct range depends on the application.

Important factors include:

• Cell model
• Chemistry
• Pack configuration
• Current demand
• Operating temperature
• BMS design
• Expected service conditions
• Production volume

For example, a small portable device may have different requirements from an industrial high-current battery.

Therefore, the manufacturer and customer should agree on the matching requirements for the actual project.

A copied tolerance from another battery design may not be appropriate.

Cell Matching Is More Than Capacity Sorting

A simple cell-matching process might sort cells by capacity.

A more complete process can consider several characteristics.

Capacity

How much energy can the cell deliver under the defined test conditions?

Internal Resistance

How much resistance does the cell present during current flow?

Voltage

What is the cell voltage under the defined test condition?

Self-Discharge

How well does the cell maintain its stored energy during storage?

Production Information

Which model and production batch does the cell belong to?

These factors provide a better picture of cell consistency.

The exact combination depends on the battery application.

Cell Matching for OEM Battery Packs

OEM battery packs often have more demanding requirements than simple consumer replacements.

The customer may specify:

• Pack voltage
• Capacity
• Maximum current
• Maximum dimensions
• Operating temperature
• BMS requirements
• Annual quantity
• Expected service life

The battery manufacturer can then select a suitable 18650 cell.

After that, the manufacturer can define the matching process.

This approach is better than choosing a generic matching tolerance first.

The battery design should come first.

What Should OEM Buyers Ask Battery Manufacturer?

Buyers can ask several simple questions before approving production.

How are the cells tested?

Ask whether the supplier measures capacity, resistance, voltage, or other parameters.

What are the matching criteria?

The supplier should explain how cells are grouped.

Are cells matched by capacity only?

For high-current applications, resistance may also need to be considered.

Are production batches recorded?

Batch information improves traceability.

Can test records be provided?

The available data depends on the supplier’s QC system and the project requirements.

How are cells grouped into the final pack?

This is especially important for large S/P configurations.

These questions can help buyers understand the supplier’s production process before mass production begins.

Example: Matching a 13S4P Battery Pack

Consider a 13S4P battery pack.

The total number of cells is:

13 × 4 = 52 cells

The pack contains 13 series groups.

Each group contains four parallel cells.

A simple production workflow looks like this:

Test → Record → Sort → Match → Group → Assemble → Test

First, the manufacturer tests the cells.

Next, the QC team records the results.

The cells are then sorted according to the agreed criteria.

Suitable cells are grouped together.

After assembly, the finished pack is tested again.

This creates two levels of quality control:

Cell-level testing

and

Pack-level testing

Both are important.

Cell Matching Does Not Fix a Poor Cell Choice

Matching is not a way to make an unsuitable cell suitable.

For example, a low-discharge cell should not be used in a high-current application simply because several cells have similar resistance and capacity.

The correct process is:

1. Define the application

2. Select the suitable cell

3. Test the cells

4. Match the cells

5. Assemble the pack

6. Test the finished pack

This sequence is particularly useful for OEM battery projects.

For more information, see How to Choose 18650 Cells for OEM Battery Packs.

Cell Matching and Bulk Purchasing

Large orders make cell matching even more important.

Consider an OEM project requiring 1,000 battery packs.

Suppose each pack uses 10S4P.

Each pack needs:

10 × 4 = 40 cells

The complete project therefore needs:

1,000 × 40 = 40,000 cells

The actual purchasing quantity may be higher because the manufacturer may need additional cells for testing, sorting, and production losses.

This is why cell matching should be discussed before the bulk order is confirmed.

The supplier needs enough suitable cells to support the production plan.

For more information, see Buying 18650 Batteries in Bulk: What Wholesale Buyers Should Check.

Common 18650 Cell Matching Mistakes

Matching Only by Capacity

Two cells can have similar capacity but different internal resistance.

For high-current applications, that difference can matter.

Assuming the Same Model Means Identical Cells

The same model follows the same specification, but individual cells can still vary.

Using Random Cells in Parallel Groups

Random grouping can create unnecessary differences between groups.

Ignoring Test Conditions

Capacity and resistance values are only useful when the test conditions are clear.

Mixing Different Cell Ages

Cells with different storage histories may behave differently.

Relying on the BMS to Solve Everything

The BMS provides protection.

It does not replace good cell selection or matching.

Testing Only the Cells

The finished battery pack also needs testing.

Assembly quality, BMS operation, wiring, insulation, and protection functions all matter.

A Practical Cell Matching Workflow

For most OEM projects, the process can be summarized in seven steps.

Step 1: Define the Battery Requirements

Confirm voltage, capacity, current, dimensions, temperature, and application.

Step 2: Select the Cell

Choose an 18650 cell that fits the electrical and mechanical requirements.

Step 3: Test Incoming Cells

Check appearance, voltage, internal resistance, and capacity as required.

Step 4: Record the Data

Keep test results and batch information for traceability.

Step 5: Sort and Match

Group cells according to the agreed matching criteria.

Step 6: Build the Battery Pack

Assemble the required S/P configuration and install the BMS.

Step 7: Test the Finished Pack

Check the finished battery according to the project’s electrical and safety requirements.

This process connects cell-level quality control with finished-pack quality control.

18650 Cell Matching Checklist

Before approving an OEM battery pack, buyers should check:

• Exact cell model
• Cell chemistry
• Rated capacity
• Capacity test method
• Internal resistance
• Resistance test method
• Cell voltage
• Production batch
• Storage history
• Matching tolerance
• S/P configuration
• BMS design
• Pack testing
• Production traceability

The exact checklist can be expanded for industrial or high-current applications.

Conclusion

18650 battery cell matching helps manufacturers build more consistent multi-cell battery packs.

Capacity is important because cells with different capacities can behave differently during charge and discharge.

Internal resistance also matters. Its effect becomes more noticeable when current increases.

However, good cell matching goes beyond these two numbers.

Voltage, self-discharge, production batch, storage history, and test conditions may also matter.

For OEM battery production, the practical approach is straightforward:

Choose the right cell → test the cells → match suitable cells → assemble the pack → test the finished pack.

Cell matching cannot replace good battery design.

Instead, it works together with proper cell selection, BMS design, thermal management, assembly, and quality control.

For buyers ordering custom 18650 battery packs, asking about the supplier’s cell matching process can provide useful information about how the battery will be controlled before and during production.

FAQ

What is 18650 battery cell matching?

18650 battery cell matching is the process of testing and grouping 18650 cells according to characteristics such as capacity, internal resistance, and voltage before battery pack assembly.

Why does internal resistance matter?

Internal resistance affects voltage drop and heat when current flows through a cell. Its effect becomes more noticeable as the battery current increases.

Are 18650 cells from the same model identical?

No. Cells from the same model follow the same basic specification, but their measured capacity, resistance, voltage, and other characteristics can vary within the specified range.

Does a BMS replace cell matching?

No. A BMS provides monitoring and protection. It does not make significantly different cells identical. Proper cell selection and matching remain important.

How are 18650 cells matched?

Manufacturers can test voltage, capacity, internal resistance, and other characteristics. The results are then used to sort and group suitable cells for the battery pack.
