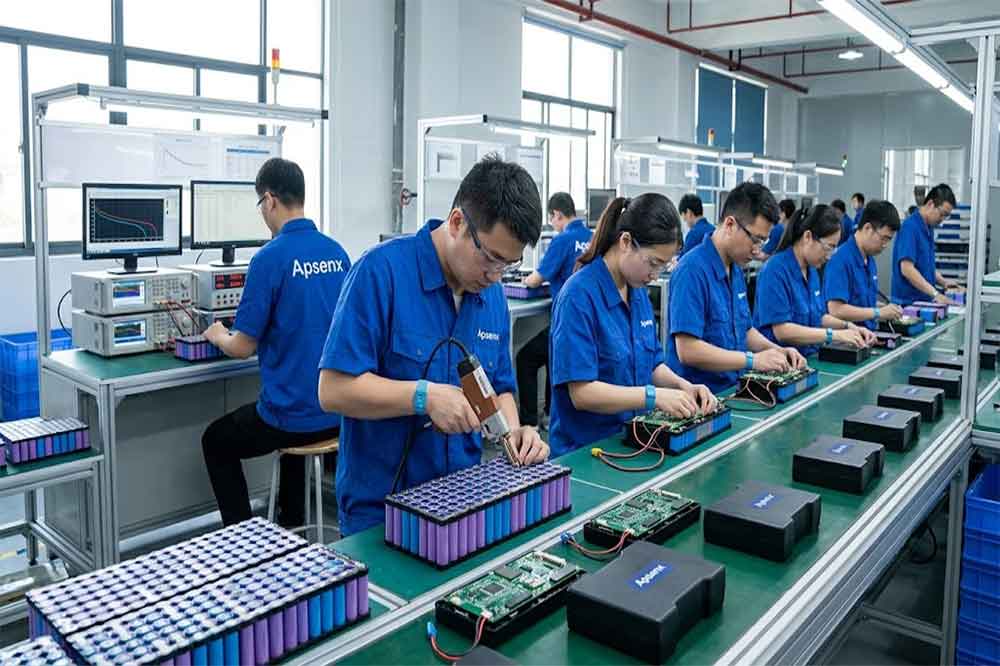

How to Select 18650 Batteries for Custom Battery Pack Manufacturing

Choosing 18650 cell is important step in custom battery pack manufacturing.

However, OEM battery design involves more than cell capacity.

The selected cell must match the required voltage, current, pack size, BMS, operating temperature, and application. It should also remain available for repeat production.

A 3000mAh cell may work well for one product. The same cell may not be suitable for another product with a higher current demand.

For this reason, battery manufacturers usually start with the application rather than the cell.

This guide explains how to select 18650 batteries for custom battery pack manufacturing. It covers cell specifications, pack configuration, current demand, cell matching, BMS selection, mechanical design, testing, and production planning.

Start With the Application

The battery application should define the cell selection.

Before choosing an 18650 cell, collect the main requirements of the equipment.

These requirements normally include:

• Required voltage
• Required capacity
• Continuous current
• Peak current
• Working temperature
• Available space
• Charging method
• Expected operating time
• Battery service life

The application also affects the battery configuration.

For example, a portable electronic device may need high energy density and compact dimensions.

A motor-driven product may need higher discharge capability.

Therefore, the highest-capacity cell is not always the correct choice.

Define the Required Battery Voltage

The next step is to determine the required pack voltage.

An 18650 lithium-ion cell normally has a nominal voltage around 3.6V or 3.7V, depending on the cell specification.

A fully charged cell commonly reaches 4.2V.

The number of cells connected in series determines the pack voltage.

For example:

Series	Approx. Nominal Voltage	Full-Charge Voltage
5S	18.0–18.5V	21.0V
7S	25.2–25.9V	29.4V
10S	36.0–37.0V	42.0V
13S	46.8–48.1V	54.6V
14S	50.4–51.8V	58.8V

The exact value depends on the selected cell.

Therefore, the manufacturer should always confirm the cell datasheet before finalizing the pack.

For more information, see 18650 Battery Voltage: 3.6V vs 3.7V and 4.2V Explained.

Calculate the Required Capacity

After voltage, calculate the required capacity.

Capacity is normally expressed in Ah or mAh.

Parallel cells increase the total capacity.

For example, four 3000mAh cells connected in parallel provide approximately:

3000mAh × 4 = 12,000mAh

That equals:

12Ah

This is a basic calculation.

Actual usable capacity can vary with discharge current, temperature, cutoff voltage, cell aging, and BMS settings.

Still, it provides a useful starting point for battery pack design.

For more information, see Standard 18650 Battery Capacity: 2000mAh, 2600mAh, 3000mAh or 3500mAh?

Do Not Choose the Cell by mAh Alone

Capacity is important.

It is not the only specification that matters.

Consider two cells:

Cell	Capacity	Main Characteristic
A	3500mAh	Higher energy
B	3000mAh	Higher discharge capability

Cell A stores more energy.

Cell B may provide better performance under a heavy load.

For a low-current device, the higher-capacity cell may be useful.

For a power tool or motor system, the higher-discharge cell may be more suitable.

Therefore, cell selection should follow the actual load profile.

Check Continuous Current

Continuous current is the current the battery needs to supply during normal operation.

This value should come from the actual equipment.

Suppose a device normally consumes 15A.

The battery pack must be able to provide that current under the expected operating conditions.

However, the calculation should not stop there.

The battery designer should also check peak current.

Check Peak Current

Some equipment needs a short burst of higher current.

Motors are a common example.

A motor may normally draw 10A but require 20A or more during startup.

The battery pack should account for this temporary load.

Peak current can affect:

• Cell selection
• Number of parallel cells
• BMS rating
• Wiring
• Connectors
• Heat generation

Therefore, both continuous and peak current should be included in an OEM battery RFQ.

For more details, see 18650 Battery Discharge Current: What Buyers Should Check.

Use Parallel Cells to Meet Current and Capacity Requirements

Parallel cells can increase pack capacity.

They can also help distribute the current between cells.

For example, a 4P group contains four cells in parallel.

If each cell has a nominal capacity of 3000mAh, the group has approximately:

3000mAh × 4 = 12Ah

The current is also shared across the four cells.

However, the exact current capability depends on the cell specification and battery design.

Adding more parallel cells also increases:

• Pack size
• Weight
• Cell cost
• Assembly work
• Thermal requirements

Therefore, more parallel cells are not automatically better.

Calculate the Series and Parallel Configuration

The battery configuration combines series and parallel connections.

For example:

10S4P

means:

• 10 cells or groups in series
• 4 cells in parallel in each group
• 40 cells in total

With 3000mAh cells, the basic capacity is approximately:

3Ah × 4 = 12Ah

The nominal voltage is approximately:

3.6V × 10 = 36V

So the pack is roughly:

36V 12Ah 10S4P

For a more detailed explanation, see 18650 Battery Series and Parallel: Understanding S and P Configurations.

Check the Physical Dimensions

Electrical performance is only one part of custom battery design.

The pack must physically fit inside the target product.

An 18650 cell is generally about 18mm in diameter and 65mm long. However, the complete battery pack needs additional space.

The final dimensions may include:

• Cells
• BMS
• Nickel strips
• Insulation
• Wires
• Connectors
• Temperature sensors
• Cell holders
• PVC or other packaging

Therefore, buyers should provide the available battery space.

A mechanical drawing is even better.

For more information, see 18650 Battery Dimensions: What Does 18650 Really Mean?

Check Flat Top or Button Top

The positive terminal design can affect battery assembly.

The two common types are:

Flat top

The positive terminal is relatively flat.

Button top

The positive terminal extends above the cell body.

The correct type depends on the pack structure and connection method.

For welded OEM battery packs, the manufacturer should confirm the terminal design before ordering cells.

See Flat Top vs Button Top 18650 Batteries: What’s the Difference? for more details.

Consider the Cell Chemistry

Cell chemistry also affects the battery design.

Different lithium-ion chemistries can have different characteristics.

These may include:

• Nominal voltage
• Energy density
• Discharge capability
• Cycle performance
• Temperature behavior
• Safety characteristics

The selected BMS must also match the battery chemistry.

For this reason, OEM buyers should provide the required chemistry in the battery specification.

Do not mix incompatible cell chemistries in one battery pack.

High-Capacity or High-Discharge?

This question appears often during OEM battery design.

A high-capacity cell focuses on storing more energy.

A high-discharge cell focuses more on current delivery.

The correct choice depends on the product.

For example, a portable monitoring device may prioritize energy capacity.

A motorized product may place more emphasis on discharge current.

The battery designer should therefore balance:

Capacity + Current + Size + Temperature + Service Life

There is no single cell type that fits every application.

See High Capacity vs High Discharge 18650 Batteries for a detailed comparison.

Check Internal Resistance

Internal resistance is another important cell parameter.

It affects voltage drop when current flows through the cell.

A simple relationship is:

Voltage drop ≈ Current × Resistance

Resistance also contributes to heat generation.

The effect becomes more noticeable at higher current.

For example, two cells may have similar capacity but different internal resistance.

Under a heavy load, the higher-resistance cell may experience greater voltage drop.

For this reason, internal resistance should be considered during OEM cell evaluation.

Match the Cells Before Assembly

Cell selection comes before cell matching.

After the manufacturer selects a suitable cell model, the cells can be tested and grouped.

Typical matching parameters include:

• Capacity
• Internal resistance
• Voltage
• Self-discharge
• Production batch
• Physical condition

The exact matching criteria depend on the battery design.

For example, a high-current industrial pack may require tighter control than a low-current portable product.

See 18650 Battery Cell Matching: Why Capacity and Resistance Matter for more information.

Why Cell Matching Matters in a Custom Pack

Imagine a 13S4P battery pack.

It contains:

13 × 4 = 52 cells

There are 13 series groups.

Each group contains four parallel cells.

The four cells in each group should have suitable characteristics.

If one cell differs significantly from the others, the group may behave differently during charging or discharging.

Therefore, matching helps create more consistent parallel groups.

It does not make every cell identical.

Instead, it reduces unnecessary variation before assembly.

Choose the BMS With the Cell and Pack

The BMS should be part of the design from the beginning.

It should match the battery configuration and cell chemistry.

Depending on the design, the BMS may provide:

• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Short-circuit protection
• Temperature monitoring
• Cell balancing

For example, a 10S battery needs a BMS designed for the correct 10-series configuration.

The BMS current rating also needs to match the battery’s expected load.

Do Not Choose the BMS by Voltage Alone

Voltage is important.

Current is also critical.

Suppose the battery is:

36V nominal

and the equipment requires:

20A continuous current

The BMS needs to support the required operating current.

The design should also consider peak current.

A BMS that meets the voltage requirement but cannot support the required current is not suitable for the application.

Therefore, the BMS should be selected together with the cell and pack configuration.

Consider Operating Temperature

Temperature can affect lithium-ion battery performance.

The battery may operate in different environments during its service life.

Important conditions include:

• Charging temperature
• Discharge temperature
• Storage temperature
• Ambient temperature
• Internal heat generation

High-current applications can create more heat.

A compact enclosure can also make heat removal more difficult.

Therefore, thermal conditions should be considered during cell selection.

Consider Energy Density

OEM buyers often want more energy from a smaller battery.

This creates a design trade-off.

A higher-capacity 18650 cell may reduce the number of parallel cells needed.

That can reduce the overall cell count.

However, the cell must still meet the current requirement.

A smaller cell count is not useful if the selected cells cannot provide the required load.

The final choice should balance energy density, current capability, size, and thermal performance.

Calculate Battery Energy

Battery energy can be estimated with this formula:

Energy (Wh) ≈ Nominal Voltage × Capacity (Ah)

For example:

36V × 12Ah = 432Wh

This provides a useful estimate for system planning.

Actual usable energy can be lower.

Discharge rate, temperature, cutoff voltage, cell aging, and BMS settings can all affect usable energy.

For a deeper explanation, see How Much Energy Does an 18650 Battery Hold? A Simple Wh Guide.

Check the Charger

The charger must match the battery pack.

Important charging parameters include:

• Battery chemistry
• Series count
• Maximum charging voltage
• Charging current
• BMS requirements

For example, a typical 10S lithium-ion battery reaches about 42V when fully charged.

The charger must be designed for the correct battery configuration.

A suitable charger is therefore part of the complete battery system.

Check the Connector

The connector is another small part that can create a large problem.

The manufacturer should confirm:

• Connector model
• Pin arrangement
• Polarity
• Wire gauge
• Wire length
• Connector position

The connector should also handle the expected current.

For high-current applications, connector selection deserves special attention.

Provide Drawings for Custom Battery Packs

A clear drawing can make OEM communication much easier.

The drawing should show the available space and important mounting details.

Useful information includes:

• Length
• Width
• Height
• Connector location
• Wire exit
• Mounting points
• Screw holes
• Installation direction

A photo of the existing battery compartment can also help.

The more accurate the mechanical information, the fewer changes may be needed during prototype development.

Prototype Before Mass Production

A prototype allows the manufacturer to test the real design.

This stage can reveal problems that are difficult to see from a specification sheet.

Typical prototype checks include:

• Pack dimensions
• Cell arrangement
• BMS operation
• Charging
• Discharging
• Temperature
• Connector position
• Installation
• Equipment compatibility

The battery should be tested in the actual product whenever possible.

This approach can reduce costly changes during mass production.

Test the Finished Battery Pack

Cell testing is important.

Pack testing is also necessary.

The finished battery can be checked according to the project requirements.

Possible tests include:

• Output voltage
• Capacity
• Charge performance
• Discharge performance
• BMS protection
• Connector polarity
• Insulation
• Temperature
• Physical dimensions

The exact test plan depends on the battery application.

Think About Repeat Production

OEM battery production rarely ends with one prototype.

A successful project may require repeated production over months or years.

Therefore, the cell supply needs attention.

The manufacturer should consider:

• Cell model stability
• Production batches
• Cell availability
• Matching requirements
• BMS availability
• Connector availability
• Packaging materials

A cell that is available for one small order may not be the best choice for a long-term OEM project.

Supply stability should be part of the initial cell selection.

Calculate the Required Cell Quantity

The S/P configuration determines the basic cell quantity.

For example:

10S4P = 40 cells per battery

If the project requires 1,000 battery packs:

40 × 1,000 = 40,000 cells

The manufacturer may need additional cells for testing, matching, and production losses.

Therefore, the purchasing plan should include some additional cell demand.

This becomes more important when the project has strict matching requirements.

For bulk purchasing information, see Buying 18650 Batteries in Bulk: What Wholesale Buyers Should Check.

Consider Future Cell Replacement

Long-term projects may face cell availability changes.

A manufacturer may need to consider an alternative cell in the future.

However, changing the cell should not be treated as a simple replacement.

A different cell may have different:

• Capacity
• Internal resistance
• Dimensions
• Discharge current
• Charging characteristics
• Weight

A replacement cell should therefore be tested before production.

The battery design may also need adjustment.

What Should an OEM Battery RFQ Include?

A detailed RFQ helps the manufacturer understand the project.

A useful RFQ can include:

Application: industrial equipment

Nominal voltage: 36V

Capacity: 12Ah

Configuration: 10S4P

Continuous current: 20A

Peak current: 30A

Cell type: 18650 lithium-ion

Pack dimensions: according to drawing

Connector: specified model

BMS: required

Operating temperature: project requirement

Quantity: annual forecast

Charging method: specified charger or charging requirement

This information gives the supplier a clear starting point.

It also reduces repeated questions during the quotation process.

Common Mistakes in Custom 18650 Battery Manufacturing

Choosing the Highest mAh Cell

A higher capacity does not automatically mean better performance.

The cell must also meet current and size requirements.

Ignoring Peak Current

Some products need much more current during startup.

The battery should account for this condition.

Checking Cell Size Only

The complete pack also contains a BMS, wiring, insulation, connectors, and other parts.

Selecting the BMS Too Late

The BMS should be considered during the initial battery design.

Skipping Cell Matching

Random cells can create unnecessary variation between parallel groups.

Going Directly to Mass Production

A prototype can identify problems before a large production order.

Changing Cell Models Without Testing

A different cell can change the electrical and thermal behavior of the complete pack.

A Practical Cell Selection Process

For OEM projects, the process can be simplified into eight steps.

Step 1: Define the Application

Understand the equipment, load, environment, and expected operating conditions.

Step 2: Define Voltage and Capacity

Calculate the required series and parallel configuration.

Step 3: Define Continuous and Peak Current

Use actual equipment measurements whenever possible.

Step 4: Select Suitable 18650 Cells

Compare capacity, discharge capability, dimensions, resistance, and supply stability.

Step 5: Confirm Mechanical Fit

Check the cell arrangement and complete pack dimensions.

Step 6: Design the BMS

Match the BMS with the series count, chemistry, current, and protection requirements.

Step 7: Build and Test a Prototype

Test the battery inside the actual equipment.

Step 8: Establish Mass Production Standards

Control the cell model, matching criteria, BMS, dimensions, assembly process, and testing requirements.

This process connects cell selection with actual OEM production.

OEM 18650 Battery Selection Checklist

Before placing a custom battery order, confirm:

• Application
• Nominal voltage
• Full-charge voltage
• Capacity
• Continuous current
• Peak current
• Cell model
• Cell chemistry
• Cell dimensions
• Terminal type
• Internal resistance
• Cell matching
• Series configuration
• Parallel configuration
• BMS specification
• Charger specification
• Connector
• Pack dimensions
• Operating temperature
• Prototype requirements
• Production quantity
• Cell supply
• Quality requirements
• Packaging
• Label requirements

A complete specification gives the battery manufacturer fewer assumptions to make.

Conclusion

Selecting an 18650 cell for custom battery pack manufacturing requires more than comparing mAh ratings.

The cell must match the battery’s voltage, capacity, current, size, temperature, and operating conditions.

It must also work with the BMS and the complete mechanical design.

For OEM production, cell matching and prototype testing add another level of control.

The basic process is:

Define the application → calculate the pack → select the cell → design the BMS → match the cells → build a prototype → test the pack → start production.

The right cell makes the rest of the battery design easier.

For this reason, OEM buyers should provide clear electrical requirements, mechanical drawings, connector information, and production forecasts before requesting a final quotation.

FAQ

How do I select 18650 cells for a custom battery pack?

Start with voltage, capacity, continuous current, peak current, available space, temperature, and application requirements. Then compare suitable cells by discharge capability, resistance, dimensions, and supply stability.

Is a higher-capacity 18650 cell always better?

No. A higher-capacity cell stores more energy, but it may not provide enough current for a high-load application. The cell should match the complete battery requirement.

How many 18650 cells are needed for a custom battery pack?

The number depends on the series and parallel configuration. For example, a 10S4P pack uses 40 cells.

Does the BMS need to match the 18650 cells?

Yes. The BMS should match the cell chemistry, series count, current requirements, and protection requirements of the battery pack.

Should OEM buyers make a prototype before mass production?

A prototype is useful for checking pack dimensions, charging, discharge, BMS operation, temperature, connector position, and compatibility with the target equipment.
